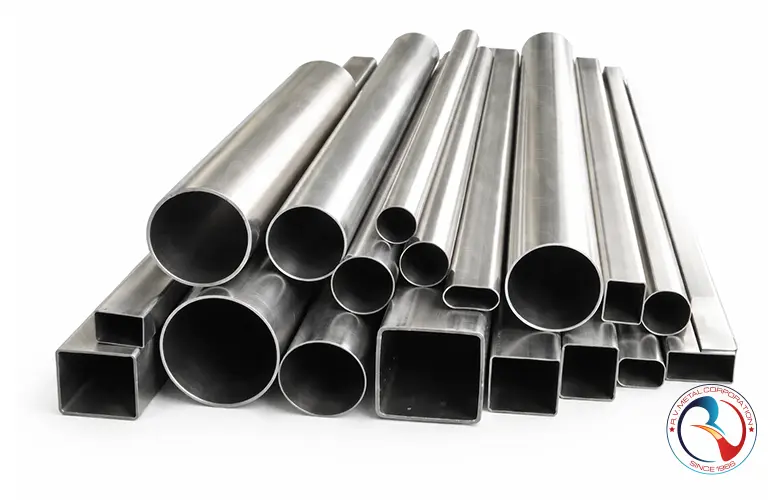

Stainless Steel Pipes & Tubes
Product Overview
R V Metal Corporation supplies a complete range of stainless steel pipes and tubes across a wide spectrum of austenitic, ferritic, martensitic and duplex grades to match real project conditions—not generic “one-grade-fits-all” supply. Our portfolio covers cost-optimized 200-series options such as J4, J7, 201 and 202 for decorative and light-duty fabrication; work-hardening and spring applications in 301/302; and the industry-standard 304 family (304/304L/304H/305) for general corrosion resistance, forming and food-grade utility. For higher temperature and oxidation environments we offer 309/309S and 310/310S, while Mo-bearing 316/316L/316H/316Ti and 317/317L grades are available for chloride exposure, chemical service and marine-adjacent installations. Stabilized grades like 321/321H and 347/347H are supplied for weld-heavy jobs and elevated-temperature piping where carbide precipitation resistance matters. For heat-tolerant and magnetic ferritic applications we stock 409L, 429, 430, 430Ti, 439, 441 and 444—widely used in exhaust systems, heat exchangers and corrosion-resistance-with-lower-Ni requirements—along with martensitic grades 410/410S and 420 for wear, strength and hardenable components. For higher strength and superior chloride stress corrosion resistance, Duplex S31803 is offered for aggressive industrial and marine service. Pipes and tubes can be supplied as welded or seamless (as applicable), in mill finish or polished finishes, with tight dimensional control, test certificates (MTC), and project-specific compliance to ASTM/EN/IS requirements as required by consultants, OEMs and EPC contractors.
Technical Specifications
| Grade / Family | Type | Key Technical Highlights | Typical Product Forms | Finish / Supply Condition | Typical Standards (Supply) | Typical Use-Cases |
|---|---|---|---|---|---|---|
| J4 | Austenitic (200-series) | Cost-optimized Ni/Mn balance, good formability, moderate corrosion resistance (interiors) | Welded Pipe, Welded Tube | Mill, 2B, BA, Polish (as required) | ASTM A554 (tubes), ASTM A312/A778 (welded pipe – when applicable) | Architectural, furniture, handrails, decorative fabrication |
| J7 | Austenitic (200-series) | Improved corrosion performance vs basic 200-series in many indoor/utility cases; good weldability | Welded Pipe, Welded Tube | Mill, 2B, BA, Polish | ASTM A554, ASTM A312/A778 (when applicable) | Decorative + utility piping, light industrial fabrication |
| 201 | Austenitic (200-series) | Work-hardening, good strength-to-cost, moderate corrosion resistance; not preferred for coastal/chlorides | Welded Tube, Welded Pipe | 2B/BA, Polish, Annealed/Cold-worked | ASTM A554, ASTM A312/A778 (when applicable) | Furniture, appliances, structural tube (non-marine) |
| 202 | Austenitic (200-series) | Better strength than 304 in some conditions, moderate corrosion resistance; cost-effective | Welded Tube, Welded Pipe | 2B/BA, Polish | ASTM A554, ASTM A312/A778 (when applicable) | Decorative/structural tube, general fabrication |
| 301 | Austenitic | High work-hardening rate; excellent for cold-formed parts; higher strength after forming | Precision Tube, Welded Tube | Annealed / Cold-worked | ASTM A554 (tubes), ASTM A249 (tubing – when applicable) | Formed components, transport, spring-like applications (tube) |
| 302 | Austenitic | General-purpose austenitic; good corrosion resistance and weldability (similar family behavior to 304) | Welded Tube, Precision Tube | Annealed / Cold-worked | ASTM A554, ASTM A249 (when applicable) | General fabrication, formed tubular parts |
| 304 | Austenitic | Industry standard; good corrosion resistance; excellent weldability/formability | Seamless Pipe, Welded Pipe, Tubes | Annealed / Pickled / Polished | ASTM A312 (pipe), ASTM A213/A249 (tubes), ASTM A554 (decorative tubes) | Food, water (non-potable), general process, fabrication |
| 304L | Austenitic (Low Carbon) | Better resistance to sensitization after welding; preferred for weld-heavy fabrication | Seamless/Welded Pipe, Tubes | Annealed / Pickled | ASTM A312, ASTM A213/A249, ASTM A554 | Welded piping spools, tanks, plant utilities |
| 304H | Austenitic (High Carbon) | Higher high-temperature strength; used in elevated temperature service | Seamless/Welded Pipe | Solution annealed | ASTM A312 | Heat exchangers/piping at elevated temperatures |
| 305 | Austenitic | Improved formability / lower work-hardening vs 304; good for deep drawing and forming | Precision Tube, Welded Tube | Annealed | ASTM A554, ASTM A249 (when applicable) | Formed tubular components, fabrication requiring deep forming |
| 308 | Austenitic | Good corrosion resistance; frequently referenced in welding consumables—tube/pipe supply on request | Pipe/Tube (custom supply) | Annealed / Pickled | ASTM (as applicable per order) | Special engineered requirements, OEM-specific |
| 309 | Austenitic (Heat Resistant) | High Cr/Ni for oxidation resistance; good at elevated temperatures | Seamless/Welded Pipe | Solution annealed | ASTM A312 | Furnace parts, high-temp ducts and piping |
| 309S | Austenitic (Heat Resistant, Low C) | Lower carbon for improved weldability; oxidation resistance for high-temp service | Seamless/Welded Pipe | Solution annealed | ASTM A312 | High-temp welded fabrications |
| 310 | Austenitic (High Temp) | Excellent oxidation and scaling resistance at very high temperatures | Seamless/Welded Pipe | Solution annealed | ASTM A312 | Furnace, radiant tubes, high-temp plant piping |
| 310S | Austenitic (High Temp, Low C) | Improved weldability vs 310; high-temp oxidation resistance | Seamless/Welded Pipe | Solution annealed | ASTM A312 | High-temp welded piping and components |
| 316 | Austenitic (Mo-bearing) | Better pitting resistance vs 304; preferred for chlorides and mild marine | Seamless/Welded Pipe, Tubes | Annealed / Pickled | ASTM A312, ASTM A213/A249 | Chemical, pharma, marine-adjacent, coastal utilities |
| 316L | Austenitic (Mo-bearing, Low C) | Best for weld-heavy chloride service; reduces sensitization risk | Seamless/Welded Pipe, Tubes | Annealed / Pickled | ASTM A312, ASTM A213/A249 | Process piping, tanks, marine/coastal fabrication |
| 316H | Austenitic (Mo-bearing, High C) | Higher elevated-temperature strength vs 316L; process/high-temp | Seamless/Welded Pipe | Solution annealed | ASTM A312 | High-temp process piping, refineries |
| 316Ti | Austenitic (Stabilized) | Titanium stabilized for high-temp and weld stability; good for thermal cycling | Seamless/Welded Pipe, Tubes | Solution annealed | ASTM A312, ASTM A213/A249 | Heat exchangers, chemical service with thermal cycling |
| 317 | Austenitic (Higher Mo) | Higher Mo improves pitting/crevice corrosion resistance vs 316 | Seamless/Welded Pipe | Annealed / Pickled | ASTM A312 | Aggressive chemical/chloride environments |
| 317L | Austenitic (Higher Mo, Low C) | Weld-friendly version of 317; improved corrosion resistance | Seamless/Welded Pipe | Annealed / Pickled | ASTM A312 | Corrosion-critical welded piping systems |
| 321 | Austenitic (Stabilized) | Titanium stabilized; good for welded systems and elevated temperature | Seamless/Welded Pipe, Tubes | Solution annealed | ASTM A312, ASTM A213/A249 | High-temp piping, exhaust, heat exchangers |
| 321H | Austenitic (Stabilized, High C) | Higher creep strength for elevated temps; stabilization maintained | Seamless/Welded Pipe | Solution annealed | ASTM A312 | Refinery/plant high-temperature piping |
| 347 | Austenitic (Stabilized) | Nb stabilized; excellent for welding + high-temp service | Seamless/Welded Pipe, Tubes | Solution annealed | ASTM A312, ASTM A213/A249 | Welded high-temp piping, thermal cycling service |
| 347H | Austenitic (Stabilized, High C) | Improved elevated-temperature strength vs 347; creep resistance | Seamless/Welded Pipe | Solution annealed | ASTM A312 | High-temp process, power plants |
| 409L | Ferritic | Magnetic; good oxidation resistance; improved weldability vs 409 | Welded Pipe, Welded Tube | Annealed / Pickled | ASTM A268 (tubing – when applicable), ASTM A554 (tube) | Automotive exhaust, heat recovery, structures |
| 410 | Martensitic | Hardenable; higher strength and wear resistance than austenitic grades | Seamless/Welded Pipe (as applicable) | Annealed / Quench & Temper (on request) | ASTM A213/A268 (as applicable) | Wear parts, shafts, mechanical tubing |
| 410S | Ferritic/Martensitic (Low C) | Improved weldability vs 410; oxidation resistance; moderate corrosion resistance | Welded Tube, Pipe | Annealed | ASTM A268 (as applicable) | Exhaust, heat exchangers, fabrication |
| 420 | Martensitic | Higher hardness potential than 410; good wear resistance after heat treatment | Mechanical Tubing (as applicable) | Annealed / Hardened (on request) | ASTM A213/A268 (as applicable) | Wear service, tooling components, mechanical parts |
| 429 | Ferritic | Magnetic; good oxidation resistance; improved corrosion vs 409 series | Welded Tube, Pipe | Annealed | ASTM A268 (as applicable) | Exhaust, heat shields, structural applications |
| 430 | Ferritic | General-purpose ferritic; good formability; moderate corrosion resistance (indoor/utility) | Welded Tube, Decorative Tube | 2B/BA, Polish | ASTM A554, ASTM A268 (as applicable) | Decorative tubes, appliances, interior fabrication |
| 430Ti | Ferritic (Stabilized) | Stabilized to improve weldability and reduce grain growth | Welded Tube | Annealed | ASTM A268 / ASTM A554 (as applicable) | Welded ferritic fabrications, heat exposure service |
| 439 | Ferritic (Stabilized) | Better corrosion + weld performance than 430; good oxidation resistance | Welded Tube, Pipe | Annealed | ASTM A268 (as applicable) | Automotive exhaust, heat exchangers |
| 441 | Ferritic (Stabilized) | Excellent high-temperature oxidation resistance; good weldability | Welded Tube, Pipe | Annealed | ASTM A268 (as applicable) | Exhaust systems, thermal applications |
| 444 | Ferritic (Mo-bearing) | Higher corrosion resistance ferritic; good for chloride/utility water vs 430 | Welded Pipe, Tube | Annealed / Pickled | ASTM A268 (as applicable) | Heat exchangers, water-side corrosion-prone service |
| S31803 (Duplex) | Duplex Stainless Steel | High strength + excellent chloride SCC resistance; better pitting than 316 in many cases | Seamless/Welded Pipe, Tubes | Solution annealed | ASTM A790 (pipe), ASTM A789 (tubes) | Marine/chemical, offshore, desalination, aggressive piping |
| Typical Supply Range (All Grades): Seamless & welded pipes/tubes (as applicable), OD/ID and wall thickness as per ASTM/EN/IS, random length & cut-length, NDT/testing (hydro, eddy current/UT) on request, MTC as per EN 10204 3.1/3.2 when required by EPC/consultants. | ||||||
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N | Cu | Ti | Nb | Other / Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J4 | ≤0.12 | 6.0–9.5 | ≤1.00 | ≤0.060 | ≤0.030 | 15.0–17.0 | 1.0–2.0 | — | ≤0.20 | 0.5–2.0 | — | — | Commercial 200-series variant (Ni/Mn/Cu balanced). Use mill MTC for exact limits. |
| J7 | ≤0.12 | 6.0–10.0 | ≤1.00 | ≤0.060 | ≤0.030 | 15.5–17.5 | 1.5–3.5 | — | ≤0.20 | 0.5–2.0 | — | — | Commercial 200-series premium variant (typically slightly higher Ni). Verify by MTC. |
| 201 | ≤0.15 | 5.5–7.5 | ≤1.00 | ≤0.060 | ≤0.030 | 16.0–18.0 | 3.5–5.5 | — | ≤0.25 | — | — | — | Standard ASTM-style 201 chemistry window (indicative). |
| 202 | ≤0.15 | 7.5–10.0 | ≤1.00 | ≤0.060 | ≤0.030 | 17.0–19.0 | 4.0–6.0 | — | ≤0.25 | — | — | — | Standard ASTM-style 202 chemistry window (indicative). |
| 301 | ≤0.15 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 16.0–18.0 | 6.0–8.0 | — | ≤0.10 | — | — | — | High work-hardening austenitic grade (indicative). |
| 302 | ≤0.15 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 17.0–19.0 | 8.0–10.0 | — | ≤0.10 | — | — | — | General-purpose austenitic (indicative). |
| 304 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 18.0–20.0 | 8.0–10.5 | — | ≤0.10 | — | — | — | 18/8 stainless (indicative). |
| 304L | ≤0.03 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 18.0–20.0 | 8.0–12.0 | — | ≤0.10 | — | — | — | Low carbon for weldability (indicative). |
| 304H | 0.04–0.10 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 18.0–20.0 | 8.0–11.0 | — | ≤0.10 | — | — | — | Higher carbon for high-temp strength (indicative). |
| 305 | ≤0.12 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 17.0–19.0 | 10.5–13.0 | — | ≤0.10 | — | — | — | Lower work-hardening; deep drawing (indicative). |
| 308 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 19.0–21.0 | 9.0–11.0 | — | ≤0.10 | — | — | — | Often referenced in welding; pipe/tube supply as per order (indicative). |
| 309 | ≤0.20 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 22.0–24.0 | 12.0–15.0 | — | ≤0.10 | — | — | — | Heat resistant; higher Cr/Ni (indicative). |
| 309S | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 22.0–24.0 | 12.0–15.0 | — | ≤0.10 | — | — | — | Low carbon variant for welding (indicative). |
| 310 | ≤0.25 | ≤2.00 | ≤1.50 | ≤0.045 | ≤0.030 | 24.0–26.0 | 19.0–22.0 | — | ≤0.10 | — | — | — | Very high-temp oxidation resistance (indicative). |
| 310S | ≤0.08 | ≤2.00 | ≤1.50 | ≤0.045 | ≤0.030 | 24.0–26.0 | 19.0–22.0 | — | ≤0.10 | — | — | — | Low carbon for welding + high-temp (indicative). |
| 316 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | ≤0.10 | — | — | — | Mo-bearing for pitting resistance (indicative). |
| 316L | ≤0.03 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | ≤0.10 | — | — | — | Low C; weld-friendly in chlorides (indicative). |
| 316H | 0.04–0.10 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | ≤0.10 | — | — | — | Higher carbon for high-temp strength (indicative). |
| 316Ti | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | ≤0.10 | — | 5×C to 0.70 | — | Ti stabilized (Ti typically ≥ 5×C, max ~0.70%). |
| 317 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 18.0–20.0 | 11.0–15.0 | 3.0–4.0 | ≤0.10 | — | — | — | Higher Mo than 316 (indicative). |
| 317L | ≤0.03 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 18.0–20.0 | 11.0–15.0 | 3.0–4.0 | ≤0.10 | — | — | — | Low carbon; weld-friendly (indicative). |
| 321 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 17.0–19.0 | 9.0–12.0 | — | ≤0.10 | — | 5×C to 0.70 | — | Ti stabilized (indicative). |
| 321H | 0.04–0.10 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 17.0–19.0 | 9.0–12.0 | — | ≤0.10 | — | ≥ 4×C | — | High C + stabilization; high-temp (indicative). |
| 347 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 17.0–19.0 | 9.0–13.0 | — | ≤0.10 | — | — | 10×C to 1.00 | Nb stabilized (Nb+Ta typically 10×C to max ~1.0%). |
| 347H | 0.04–0.10 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.030 | 17.0–19.0 | 9.0–13.0 | — | ≤0.10 | — | — | 8×C to 1.00 | High carbon + Nb stabilization for creep strength (indicative). |
| 409L | ≤0.03 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 10.5–12.5 | ≤0.50 | — | — | — | ≤0.75 | — | Ferritic; stabilized variants may contain Ti (indicative). |
| 410 | 0.08–0.15 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 11.5–13.5 | ≤0.75 | — | — | — | — | — | Martensitic; hardenable (indicative). |
| 410S | ≤0.08 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 11.5–13.5 | ≤0.60 | — | — | — | — | — | Lower carbon for weldability (indicative). |
| 420 | 0.15–0.40 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 12.0–14.0 | ≤0.75 | — | — | — | — | — | Higher carbon martensitic (indicative). |
| 429 | ≤0.12 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 14.0–16.0 | ≤0.50 | — | — | — | — | — | Ferritic; improved oxidation resistance (indicative). |
| 430 | ≤0.12 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 16.0–18.0 | ≤0.75 | — | — | — | — | — | Ferritic; common decorative grade (indicative). |
| 430Ti | ≤0.08 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 16.0–18.0 | ≤0.75 | — | — | — | 0.20–0.75 | — | Ti stabilized ferritic (indicative). |
| 439 | ≤0.03 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 17.0–19.0 | ≤0.50 | — | — | — | 0.20–0.75 | — | Stabilized ferritic for weldability (indicative). |
| 441 | ≤0.03 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 17.5–19.5 | ≤0.50 | — | — | — | 0.10–0.75 | 0.10–1.00 | Stabilized with Ti + Nb; high-temp oxidation resistance (indicative). |
| 444 | ≤0.025 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 17.5–19.5 | ≤1.00 | 1.75–2.50 | — | — | 0.20–0.75 | 0.20–1.00 | Mo-bearing ferritic; improved pitting resistance (indicative). |
| S31803 (Duplex) | ≤0.03 | ≤2.00 | ≤1.00 | ≤0.030 | ≤0.020 | 21.0–23.0 | 4.5–6.5 | 2.5–3.5 | 0.08–0.20 | — | — | — | Duplex 2205-family chemistry window (verify per UNS/EN order requirement). |
| NOTE (Important): Values above are typical/indicative chemistry ranges used in industry. Actual permissible limits depend on the exact standard (ASTM/EN/IS), product form (seamless/welded), and ordered UNS/EN/IS designation. For EPC/consultant submittals, always attach Mill Test Certificate (MTC) and reference the governing standard edition. | |||||||||||||
UNS Codes & Grades
| Stainless Steel Grade | UNS Designation | EN / DIN Equivalent | ISO / Other References | Category | Remarks |
|---|---|---|---|---|---|
| J4 | — (Proprietary) | ≈ EN 1.4372 | AISI 201-mod | Austenitic (200 Series) | Commercial grade; chemistry varies by mill |
| J7 | — (Proprietary) | ≈ EN 1.4372 / 1.4371 | AISI 201-mod | Austenitic (200 Series) | Higher Ni than J4; confirm by MTC |
| 201 | S20100 | EN 1.4372 | AISI 201 | Austenitic (200 Series) | Mn-based austenitic stainless steel |
| 202 | S20200 | EN 1.4373 | AISI 202 | Austenitic (200 Series) | Higher Mn than 201 |
| 301 | S30100 | EN 1.4310 | AISI 301 | Austenitic | High work-hardening rate |
| 302 | S30200 | EN 1.4317 | AISI 302 | Austenitic | General purpose |
| 304 | S30400 | EN 1.4301 | AISI 304 | Austenitic | Most widely used SS grade |
| 304L | S30403 | EN 1.4307 | AISI 304L | Austenitic | Low carbon, weld-friendly |
| 304H | S30409 | EN 1.4948 | AISI 304H | Austenitic | High-temperature applications |
| 305 | S30500 | EN 1.4303 | AISI 305 | Austenitic | Low work-hardening |
| 308 | S30800 | EN 1.4311 | AISI 308 | Austenitic | Often used in welding consumables |
| 309 | S30900 | EN 1.4828 | AISI 309 | Austenitic (Heat Resistant) | High Cr-Ni content |
| 309S | S30908 | EN 1.4833 | AISI 309S | Austenitic (Heat Resistant) | Low carbon variant |
| 310 | S31000 | EN 1.4845 | AISI 310 | Austenitic (Heat Resistant) | Excellent oxidation resistance |
| 310S | S31008 | EN 1.4841 | AISI 310S | Austenitic (Heat Resistant) | Low carbon for welding |
| 316 | S31600 | EN 1.4401 | AISI 316 | Austenitic | Mo added for corrosion resistance |
| 316L | S31603 | EN 1.4404 | AISI 316L | Austenitic | Low carbon, marine grade |
| 316H | S31609 | EN 1.4919 | AISI 316H | Austenitic | High temperature strength |
| 316Ti | S31635 | EN 1.4571 | AISI 316Ti | Austenitic | Titanium stabilized |
| 317 | S31700 | EN 1.4449 | AISI 317 | Austenitic | Higher Mo than 316 |
| 317L | S31703 | EN 1.4438 | AISI 317L | Austenitic | Low carbon variant |
| 321 | S32100 | EN 1.4541 | AISI 321 | Austenitic | Ti stabilized |
| 321H | S32109 | EN 1.4878 | AISI 321H | Austenitic | High carbon for heat resistance |
| 347 | S34700 | EN 1.4550 | AISI 347 | Austenitic | Nb stabilized |
| 347H | S34709 | EN 1.4961 | AISI 347H | Austenitic | High-temperature service |
| 409L | S40903 | EN 1.4512 | AISI 409L | Ferritic | Automotive exhaust grade |
| 410 | S41000 | EN 1.4006 | AISI 410 | Martensitic | Hardenable stainless steel |
| 410S | S41008 | EN 1.4000 | AISI 410S | Ferritic | Low carbon variant |
| 420 | S42000 | EN 1.4021 / 1.4028 | AISI 420 | Martensitic | High hardness |
| 429 | S42900 | EN 1.4510 | AISI 429 | Ferritic | Improved oxidation resistance |
| 430 | S43000 | EN 1.4016 | AISI 430 | Ferritic | Decorative and architectural |
| 430Ti | S43035 | EN 1.4511 | AISI 430Ti | Ferritic | Ti stabilized ferritic grade |
| 439 | S43900 | EN 1.4510 | AISI 439 | Ferritic | Weld-friendly ferritic SS |
| 441 | S44100 | EN 1.4509 | AISI 441 | Ferritic | Ti + Nb stabilized |
| 444 | S44400 | EN 1.4521 | AISI 444 | Ferritic | Mo bearing, superior corrosion resistance |
| S31803 | S31803 | EN 1.4462 | Duplex 2205 | Duplex Stainless Steel | High strength & chloride resistance |
| Important Note: J-grades (J4, J7) are trade/commercial designations and do not have fixed UNS numbers. Exact chemistry and compliance must always be verified through Mill Test Certificates (MTC) as per ASTM / EN standards. | |||||
Mechanical, Physical & Fabrication Properties
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Hardness (HRB / HB) | Density (g/cm³) | Fabrication & Welding Characteristics | Typical Service Behavior |
|---|---|---|---|---|---|---|---|
| J4 | ≥ 230 | 520–680 | 30–35 | HRB 85–95 | 7.85 | Good formability, weldable with care | Moderate corrosion resistance, indoor / decorative use |
| J7 | ≥ 240 | 540–700 | 30–35 | HRB 85–95 | 7.85 | Better drawability than J4 | Improved surface finish, cost-optimized grade |
| 201 | ≥ 275 | 515–750 | 40 | HRB ≤ 95 | 7.86 | Good forming, limited corrosion resistance | Structural & decorative applications |
| 202 | ≥ 275 | 520–760 | 40 | HRB ≤ 95 | 7.86 | Weldable, higher Mn content | Better corrosion than 201 |
| 301 | ≥ 205 | 515–750 | 40 | HRB ≤ 95 | 7.93 | Excellent work hardening | High strength after cold work |
| 302 | ≥ 205 | 515–750 | 40 | HRB ≤ 95 | 7.93 | Good weldability | General purpose piping |
| 304 | ≥ 205 | 515–720 | 40 | HRB ≤ 92 | 8.00 | Excellent weldability & formability | Food, chemical, architectural |
| 304L | ≥ 170 | 485–630 | 40 | HRB ≤ 90 | 8.00 | Superior weld corrosion resistance | Pressure vessels, pipelines |
| 304H | ≥ 205 | 515–720 | 40 | HB ≤ 201 | 8.00 | Heat resistant | High temperature piping |
| 305 | ≥ 170 | 480–620 | 45 | HRB ≤ 90 | 8.00 | Low work hardening | Deep drawing applications |
| 309 / 309S | ≥ 205 | 520–720 | 40 | HB ≤ 217 | 7.98 | Excellent oxidation resistance | Furnace & heat exchangers |
| 310 / 310S | ≥ 205 | 520–720 | 40 | HB ≤ 217 | 7.90 | Outstanding high-temp strength | Continuous high temperature service |
| 316 | ≥ 205 | 515–690 | 40 | HRB ≤ 95 | 8.00 | Excellent corrosion resistance | Marine & chemical industries |
| 316L | ≥ 170 | 485–630 | 40 | HRB ≤ 90 | 8.00 | Best for welding | Seawater & pharmaceutical |
| 316Ti | ≥ 205 | 515–690 | 40 | HB ≤ 217 | 8.00 | Ti stabilized | High temperature corrosion resistance |
| 321 / 321H | ≥ 205 | 515–720 | 40 | HB ≤ 217 | 7.90 | Ti stabilized, weld-safe | Heat exchangers |
| 347 / 347H | ≥ 205 | 515–720 | 40 | HB ≤ 217 | 7.90 | Nb stabilized | Severe thermal cycling |
| 409L | ≥ 170 | 380–450 | 20 | HRB ≤ 80 | 7.70 | Good weldability | Automotive exhaust systems |
| 410 / 410S | ≥ 275 | 480–650 | 20 | HB 180–230 | 7.75 | Heat treatable | Valves, pumps |
| 420 | ≥ 345 | 700–900 | 15 | HB 230–280 | 7.75 | Hardening required | Wear resistant components |
| 430 / 430Ti | ≥ 205 | 450–600 | 22 | HRB ≤ 88 | 7.70 | Limited formability | Decorative, appliances |
| S31803 (Duplex) | ≥ 450 | 620–880 | 25 | HB ≤ 290 | 7.80 | Excellent weldability with control | High strength, chloride resistance |
| Disclaimer: Mechanical values are typical for solution-annealed pipes & tubes. Exact values depend on size, wall thickness, heat treatment and applicable ASTM / EN standard. J-grades are commercial specifications — MTC verification is mandatory. | |||||||
Common Names & International Identifiers
| Grade | Common / Trade Names | UNS Designation | EN / DIN Equivalent | ISO / JIS Equivalent | Category |
|---|---|---|---|---|---|
| J4 | J4 Stainless, Low-Nickel SS | — (Commercial) | Approx. EN 1.4372* | — | 200 Series (Commercial) |
| J7 | J7 Stainless, Improved J4 | — (Commercial) | Approx. EN 1.4372* | — | 200 Series (Commercial) |
| 201 | Cr-Mn Austenitic Stainless | S20100 | EN 1.4372 (X12CrMnNiN17-7-5) | JIS SUS201 | Austenitic (200 Series) |
| 202 | Cr-Mn-Ni Stainless | S20200 | EN 1.4373 | JIS SUS202 | Austenitic (200 Series) |
| 301 | Work-Hardening Stainless | S30100 | EN 1.4310 (X10CrNi18-8) | JIS SUS301 | Austenitic |
| 302 | General Purpose SS | S30200 | EN 1.4310 | JIS SUS302 | Austenitic |
| 304 | 18-8 Stainless Steel | S30400 | EN 1.4301 (X5CrNi18-10) | JIS SUS304 | Austenitic |
| 304L | Low Carbon 304 | S30403 | EN 1.4307 (X2CrNi18-9) | JIS SUS304L | Austenitic |
| 304H | High Carbon 304 | S30409 | EN 1.4948 | — | Austenitic (Heat Resistant) |
| 305 | Deep Drawing Stainless | S30500 | EN 1.4303 | JIS SUS305 | Austenitic |
| 308 | Welding Grade Stainless | S30800 | EN 1.4311 | JIS SUS308 | Austenitic |
| 309 / 309S | High-Temperature SS | S30900 / S30908 | EN 1.4828 / 1.4833 | JIS SUS309 / 309S | Austenitic (Heat Resistant) |
| 310 / 310S | High Chromium-Nickel SS | S31000 / S31008 | EN 1.4841 / 1.4845 | JIS SUS310 / 310S | Austenitic (Heat Resistant) |
| 316 | Marine Stainless Steel | S31600 | EN 1.4401 (X5CrNiMo17-12-2) | JIS SUS316 | Austenitic |
| 316L | Low Carbon Marine SS | S31603 | EN 1.4404 (X2CrNiMo17-12-2) | JIS SUS316L | Austenitic |
| 316H | High Carbon 316 | S31609 | EN 1.4919 | — | Austenitic |
| 316Ti | Titanium Stabilized 316 | S31635 | EN 1.4571 | JIS SUS316Ti | Austenitic |
| 317 / 317L | High Mo Stainless | S31700 / S31703 | EN 1.4449 | JIS SUS317 / 317L | Austenitic |
| 321 / 321H | Titanium Stabilized SS | S32100 / S32109 | EN 1.4541 / 1.4878 | JIS SUS321 | Austenitic |
| 347 / 347H | Niobium Stabilized SS | S34700 / S34709 | EN 1.4550 | JIS SUS347 | Austenitic |
| 409L | Automotive Exhaust SS | S40900 | EN 1.4512 | JIS SUS409L | Ferritic |
| 410 / 410S | 13% Chromium SS | S41000 / S41008 | EN 1.4006 / 1.4000 | JIS SUS410 | Martensitic |
| 420 | Hardenable Stainless | S42000 | EN 1.4021 / 1.4028 | JIS SUS420 | Martensitic |
| 429 | Cr-Stabilized Ferritic SS | S42900 | EN 1.4510 | JIS SUS429 | Ferritic |
| 430 / 430Ti | Decorative Stainless | S43000 | EN 1.4016 | JIS SUS430 | Ferritic |
| 439 / 441 / 444 | Stabilized Ferritic SS | S43900 / S44100 / S44400 | EN 1.4509 / 1.4521 | JIS SUS439 / 444 | Ferritic |
| S31803 | Duplex Stainless Steel 2205 | S31803 / S32205 | EN 1.4462 | — | Duplex Stainless Steel |
| Note: J-grades (J4, J7) are commercial Indian market grades and do not have official ASTM / EN / UNS recognition. For critical applications, ASTM/EN grades with MTC must be specified. | |||||
Standards & International Equivalents
| Stainless Steel Grade | ASTM / ASME Standard | UNS No. | EN / DIN Equivalent | ISO Standard | JIS (Japan) | IS (India) |
|---|---|---|---|---|---|---|
| J4 | — (Commercial Grade) | — | Approx. EN 1.4372* | — | — | — |
| J7 | — (Commercial Grade) | — | Approx. EN 1.4372* | — | — | — |
| 201 | ASTM A213 / A249 / A312 | S20100 | EN 1.4372 (X12CrMnNiN17-7-5) | ISO 15510 | SUS201 | IS 6911 |
| 202 | ASTM A213 / A249 / A312 | S20200 | EN 1.4373 | ISO 15510 | SUS202 | IS 6911 |
| 301 | ASTM A240 / A666 | S30100 | EN 1.4310 | ISO 15510 | SUS301 | IS 6911 |
| 302 | ASTM A240 | S30200 | EN 1.4310 | ISO 15510 | SUS302 | IS 6911 |
| 304 | ASTM A213 / A249 / A312 / A358 | S30400 | EN 1.4301 | ISO 15510 | SUS304 | IS 6911 / IS 5521 |
| 304L | ASTM A213 / A249 / A312 / A358 | S30403 | EN 1.4307 | ISO 15510 | SUS304L | IS 6911 |
| 304H | ASTM A213 | S30409 | EN 1.4948 | ISO 15510 | — | — |
| 305 | ASTM A240 | S30500 | EN 1.4303 | ISO 15510 | SUS305 | IS 6911 |
| 308 | ASTM A240 | S30800 | EN 1.4311 | ISO 15510 | SUS308 | — |
| 309 / 309S | ASTM A213 / A312 | S30900 / S30908 | EN 1.4828 / 1.4833 | ISO 15510 | SUS309 / 309S | IS 6911 |
| 310 / 310S | ASTM A213 / A312 | S31000 / S31008 | EN 1.4841 / 1.4845 | ISO 15510 | SUS310 / 310S | IS 6911 |
| 316 | ASTM A213 / A249 / A312 / A358 | S31600 | EN 1.4401 | ISO 15510 | SUS316 | IS 6911 |
| 316L | ASTM A213 / A249 / A312 / A358 | S31603 | EN 1.4404 | ISO 15510 | SUS316L | IS 6911 |
| 316H | ASTM A213 | S31609 | EN 1.4919 | ISO 15510 | — | — |
| 316Ti | ASTM A213 | S31635 | EN 1.4571 | ISO 15510 | SUS316Ti | — |
| 317 / 317L | ASTM A213 / A312 | S31700 / S31703 | EN 1.4449 | ISO 15510 | SUS317 / 317L | — |
| 321 / 321H | ASTM A213 / A312 | S32100 / S32109 | EN 1.4541 / 1.4878 | ISO 15510 | SUS321 | IS 6911 |
| 347 / 347H | ASTM A213 / A312 | S34700 / S34709 | EN 1.4550 | ISO 15510 | SUS347 | IS 6911 |
| 409L | ASTM A268 | S40900 | EN 1.4512 | ISO 15510 | SUS409L | — |
| 410 / 410S | ASTM A268 / A213 | S41000 / S41008 | EN 1.4006 / 1.4000 | ISO 15510 | SUS410 | IS 6911 |
| 420 | ASTM A268 | S42000 | EN 1.4021 / 1.4028 | ISO 15510 | SUS420 | — |
| 429 | ASTM A268 | S42900 | EN 1.4510 | ISO 15510 | SUS429 | — |
| 430 / 430Ti | ASTM A268 | S43000 | EN 1.4016 | ISO 15510 | SUS430 | IS 6911 |
| 439 / 441 / 444 | ASTM A268 | S43900 / S44100 / S44400 | EN 1.4509 / 1.4521 | ISO 15510 | SUS439 / 444 | — |
| S31803 (Duplex 2205) | ASTM A790 / A928 | S31803 / S32205 | EN 1.4462 | ISO 17781 | — | — |
| Note: J4 and J7 are non-standard commercial grades without official ASTM, EN, ISO or UNS recognition. They should not be specified for pressure, critical, export, or audited projects. | ||||||
Applications
| Stainless Steel Grade | Primary Applications | Industry Usage | Key Reason for Selection |
|---|---|---|---|
| J4 | Decorative piping, furniture tubes, railing systems | Interior, Architectural | Low cost, moderate corrosion resistance, non-critical use only |
| J7 | Bus body tubing, kitchen equipment frames | Automotive (non-structural), Fabrication | Higher Mn for strength, unsuitable for pressure or welding-critical use |
| 201 / 202 | Structural tubes, handrails, furniture, transport bodies | Construction, Automotive, Fabrication | Cost-effective alternative to 304 with acceptable strength |
| 301 / 302 | Spring tubes, structural components, formed parts | Railways, Automotive | High work-hardening rate and strength |
| 304 / 304L | Process piping, water lines, food-grade tubing | Food, Pharma, HVAC, Plumbing | Excellent corrosion resistance and weldability |
| 304H | High-temperature piping, heat exchangers | Power Plants, Refineries | Higher carbon for elevated temperature strength |
| 305 | Cold-formed tubes, deep drawn components | Fabrication, Electrical | Low work hardening, excellent formability |
| 308 | Welding filler pipes, fabricated assemblies | Fabrication, Welding | Designed primarily for welding compatibility |
| 309 / 309S | Furnace tubes, burner lines, heat treatment piping | Thermal Processing | High chromium & nickel for oxidation resistance |
| 310 / 310S | Radiant tubes, high-temperature exhaust systems | Furnaces, Petrochemical | Excellent strength and scaling resistance above 1000°C |
| 316 / 316L | Chemical pipelines, marine piping, pharma systems | Chemical, Marine, Pharmaceutical | Molybdenum improves pitting and chloride resistance |
| 316H | High-temperature chemical piping | Refineries, Power Plants | Enhanced creep strength |
| 316Ti | Heat-exposed welded pipelines | Chemical Processing | Titanium stabilization prevents intergranular corrosion |
| 317 / 317L | Severe chemical service piping | Chemical Plants | Higher Mo than 316 for aggressive environments |
| 321 / 321H | Aerospace tubing, exhaust manifolds | Aviation, Thermal Systems | Stable at high temperature after welding |
| 347 / 347H | High-pressure steam lines | Power Generation | Niobium stabilization for creep resistance |
| 409L | Automotive exhaust pipes | Automotive | Good oxidation resistance at low cost |
| 410 / 410S | Mechanical tubing, valve bodies | Engineering | Moderate corrosion resistance with high strength |
| 420 | Wear-resistant tubes, shafts | Mechanical Engineering | High hardness after heat treatment |
| 429 / 430 / 430Ti | Decorative pipes, appliance tubing | Appliances, Architecture | Good formability and oxidation resistance |
| 439 / 441 / 444 | Automotive exhaust, heat exchangers | Automotive, Thermal | Improved corrosion resistance over 409 |
| S31803 (Duplex 2205) | Offshore piping, desalination plants, pressure pipelines | Oil & Gas, Marine, Power | High strength and superior chloride stress corrosion resistance |
Common Stainless Steel Pipes & Tubes Dimensions Chart
NOTE (Read Before Using the Charts):
• Theoretical weights are calculated using ρ = 7.93 g/cm³ (7930 kg/m³).
• Actual weight varies with OD/WT tolerance, ovality, weld bead, and finish (pickled/polished).
• Formula: kg/m = 0.02491 × (OD × t − t²) (OD & t in mm).
• These charts are applicable for all grades listed (J7, J4, 201…444, S31803). Grade selection affects corrosion/strength, not the geometry.
• Theoretical weights are calculated using ρ = 7.93 g/cm³ (7930 kg/m³).
• Actual weight varies with OD/WT tolerance, ovality, weld bead, and finish (pickled/polished).
• Formula: kg/m = 0.02491 × (OD × t − t²) (OD & t in mm).
• These charts are applicable for all grades listed (J7, J4, 201…444, S31803). Grade selection affects corrosion/strength, not the geometry.
Grade Coverage (Applies to All Size Tables Below)
| Type | Grades Covered | Typical Use |
|---|---|---|
| Austenitic | J7, J4, 201, 202, 301, 302, 304, 304L, 304H, 305, 308, 309, 309S, 310, 310S, 316, 316L, 316H, 316Ti, 317, 317L, 321, 321H, 347, 347H | General fabrication, process piping, corrosion resistance |
| Ferritic / Martensitic | 409L, 410, 410S, 420, 429, 430, 430Ti, 439, 441, 444 | Heat/oxidation service, cost-optimized corrosion environments |
| Duplex | S31803 | High strength + chloride resistance (marine/chemical) |
Common NPS Pipe Sizes – OD / Wall Thickness / Theoretical Weight (kg/m)
| NPS | OD (mm) | WT 5S (mm) | Wt 5S (kg/m) | WT 10S (mm) | Wt 10S (kg/m) | WT 40S (mm) | Wt 40S (kg/m) | WT 80S (mm) | Wt 80S (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 21.34 | 1.65 | 0.827 | 2.11 | 1.033 | 2.77 | 1.321 | 3.73 | 1.706 |
| 3/4 | 26.67 | 1.65 | 1.048 | 2.11 | 1.301 | 2.87 | 1.736 | 3.91 | 2.292 |
| 1 | 33.40 | 1.65 | 1.319 | 2.77 | 2.113 | 3.38 | 2.536 | 4.55 | 3.299 |
| 1-1/4 | 42.16 | 1.65 | 1.672 | 2.77 | 2.680 | 3.56 | 3.376 | 4.85 | 4.482 |
| 1-1/2 | 48.26 | 1.65 | 1.918 | 2.77 | 3.066 | 3.68 | 3.998 | 5.08 | 5.360 |
| 2 | 60.33 | 1.65 | 2.410 | 2.77 | 3.828 | 3.91 | 5.258 | 5.54 | 7.197 |
| 2-1/2 | 73.03 | 2.11 | 3.720 | 3.05 | 5.291 | 5.16 | 8.744 | 7.01 | 11.670 |
| 3 | 88.90 | 2.11 | 4.548 | 3.05 | 6.449 | 5.49 | 11.430 | 7.62 | 15.262 |
| 4 | 114.30 | 2.11 | 5.881 | 3.05 | 8.314 | 6.02 | 16.090 | 8.56 | 22.586 |
| 5 | 141.30 | 2.77 | 9.472 | 3.40 | 11.420 | 6.55 | 21.450 | 9.53 | 30.750 |
| 6 | 168.28 | 2.77 | 11.320 | 3.40 | 14.040 | 7.11 | 29.055 | 10.97 | 44.515 |
| 8 | 219.08 | 3.40 | 18.350 | 4.78 | 25.290 | 8.18 | 42.900 | 12.70 | 65.400 |
| 10 | 273.05 | 4.19 | 28.090 | 4.78 | 32.000 | 9.27 | 61.300 | 12.70 | 82.900 |
| 12 | 323.85 | 4.57 | 36.000 | 6.35 | 49.700 | 9.53 | 73.800 | 12.70 | 97.900 |
Common Metric Tube ODs – Theoretical Weight (kg/m) vs Wall Thickness
| OD (mm) | t = 1.0 mm | t = 1.5 mm | t = 2.0 mm | t = 2.5 mm | t = 3.0 mm | t = 4.0 mm | t = 5.0 mm |
|---|---|---|---|---|---|---|---|
| 6.0 | 0.125 | 0.168 | 0.199 | 0.224 | 0.245 | 0.277 | 0.299 |
| 8.0 | 0.174 | 0.238 | 0.290 | 0.333 | 0.371 | 0.430 | 0.475 |
| 10.0 | 0.224 | 0.309 | 0.382 | 0.446 | 0.499 | 0.589 | 0.663 |
| 12.0 | 0.274 | 0.380 | 0.475 | 0.561 | 0.629 | 0.753 | 0.859 |
| 15.0 | 0.350 | 0.492 | 0.621 | 0.739 | 0.835 | 1.010 | 1.164 |
| 18.0 | 0.427 | 0.604 | 0.769 | 0.922 | 1.045 | 1.275 | 1.479 |
| 22.0 | 0.530 | 0.755 | 0.967 | 1.168 | 1.328 | 1.640 | 1.928 |
| 28.0 | 0.685 | 0.983 | 1.267 | 1.535 | 1.758 | 2.200 | 2.616 |
| 35.0 | 0.866 | 1.253 | 1.625 | 1.980 | 2.278 | 2.880 | 3.455 |
| 42.0 | 1.046 | 1.522 | 1.982 | 2.424 | 2.803 | 3.580 | 4.327 |
| 54.0 | 1.351 | 1.982 | 2.594 | 3.190 | 3.699 | 4.760 | 5.801 |
| 60.3 | 1.510 | 2.220 | 2.910 | 3.585 | 4.160 | 5.380 | 6.580 |
| 76.1 | 1.916 | 2.823 | 3.705 | 4.565 | 5.300 | 6.880 | 8.420 |
| 88.9 | 2.248 | 3.323 | 4.371 | 5.390 | 6.275 | 8.190 | 10.070 |
| 101.6 | 2.574 | 3.821 | 5.043 | 6.236 | 7.279 | 9.550 | 11.790 |
| 114.3 | 2.895 | 4.303 | 5.676 | 7.014 | 8.180 | 10.720 | 13.240 |
| 139.7 | 3.540 | 5.280 | 6.980 | 8.650 | 10.120 | 13.350 | 16.550 |
| 168.3 | 4.280 | 6.420 | 8.520 | 10.580 | 12.400 | 16.420 | 20.430 |
| 219.1 | 5.590 | 8.410 | 11.190 | 13.930 | 16.370 | 21.850 | 27.300 |
| 273.1 | 7.000 | 10.560 | 14.080 | 17.550 | 20.650 | 27.620 | 34.540 |
| 323.9 | 8.340 | 12.600 | 16.820 | 21.000 | 24.760 | 33.250 | 41.690 |
Nominal Bore, Outside Diameter, Schedule, Thickness & Weight Chart — Stainless Steel Pipes & Tubes
The following table provides nominal bore sizes, outside diameters, wall thicknesses, and theoretical weights per meter for stainless steel pipes and tubes as per ASME pipe schedules (Sch 5S, 10S, 40S, 80S, 160S & XXS).
| NB (mm) |
NB (Inch) |
OD (mm) |
Sch 5S | Sch 10S | Sch 40S | Sch 80S | Sch 160S | Sch XXS | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wt (mm) | kg/m | Wt (mm) | kg/m | Wt (mm) | kg/m | Wt (mm) | kg/m | Wt (mm) | kg/m | Wt (mm) | kg/m | |||
| 3 | 1/8 | 10.3 | 1.24 | 0.276 | 1.24 | 0.28 | 1.73 | 0.37 | 2.41 | 0.47 | – | – | – | – |
| 6 | 1/4 | 13.7 | 1.24 | 0.390 | 1.65 | 0.49 | 2.24 | 0.631 | 3.02 | 0.80 | – | – | – | – |
| 10 | 3/8 | 17.1 | 1.24 | 0.490 | 1.65 | 0.63 | 2.31 | 0.845 | 3.20 | 1.10 | – | – | – | – |
| 15 | 1/2 | 21.3 | 1.65 | 0.800 | 2.11 | 1.00 | 2.77 | 1.27 | 3.75 | 1.62 | 4.75 | 1.94 | 7.47 | 2.55 |
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 2.11 | 1.28 | 2.87 | 1.68 | 3.91 | 2.20 | 5.54 | 2.89 | 7.82 | 3.63 |
| 25 | 1 | 33.4 | 1.65 | 1.30 | 2.77 | 2.09 | 3.38 | 2.50 | 4.55 | 3.24 | 6.35 | 4.24 | 9.09 | 5.45 |
| 32 | 1 1/4 | 42.2 | 1.65 | 1.65 | 2.77 | 2.70 | 3.56 | 3.38 | 4.85 | 4.47 | 6.35 | 5.61 | 9.70 | 7.77 |
| 40 | 1 1/2 | 48.3 | 1.65 | 1.91 | 2.77 | 3.11 | 3.68 | 4.05 | 5.08 | 5.41 | 7.14 | 7.25 | 10.16 | 9.54 |
| 50 | 2 | 60.3 | 1.65 | 2.40 | 2.77 | 3.93 | 3.91 | 5.44 | 5.54 | 7.48 | 8.74 | 11.10 | 11.07 | 13.44 |
| 65 | 2 1/2 | 73.0 | 2.11 | 3.69 | 3.05 | 5.26 | 5.16 | 8.63 | 7.01 | 11.40 | 9.53 | 14.90 | 14.20 | 20.39 |
| 80 | 3 | 88.9 | 2.11 | 4.51 | 3.05 | 6.45 | 5.49 | 11.30 | 7.62 | 15.20 | 11.10 | 21.30 | 15.24 | 27.65 |
| 100 | 4 | 114.3 | 2.11 | 5.84 | 3.05 | 8.36 | 6.02 | 16.07 | 8.56 | 22.30 | 13.49 | 33.54 | 17.12 | 41.03 |
Note: Weights are theoretical and calculated using stainless steel density of approximately 8.00 g/cm³. Actual weights may vary due to manufacturing tolerances.
Stainless Steel Pipe OD Chart
A.S.A. Pipe Schedules – two-row layout per pipe size (Row-1 = Wall Thickness in inches, Row-2 = Weight)
| PIPE SIZE (in) |
OD (in) |
A.S.A. Pipe Schedules | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5S | 5 | 10S | 10 | 20 | 30 | 40S & Std. | 40 | 60 | 80S & E.H. | 80 | 100 | 120 | 140 | 160 | DBL E.H. | ||
| 8 | 8.625 | .109 | .109 | .148 | .148 | .250 | .277 | .322 | .322 | .406 | .500 | .500 | .593 | .718 | .812 | .906 | .885 |
| – | – | 9.914 | 9.914 | 13.40 | 13.40 | 22.36 | 24.70 | 28.55 | 28.55 | 35.64 | 43.39 | 43.39 | 50.87 | 60.93 | 67.76 | 74.69 | 72.42 |
| 9 | 9.625 | – | – | – | – | – | .342 | – | – | – | .500 | – | – | – | – | – | – |
| – | – | – | – | – | – | – | 33.90 | – | – | – | 48.72 | – | – | – | – | – | – |
| 10 | 10.750 | .134 | .134 | .165 | .165 | .250 | .307 | .365 | .365 | .500 | .500 | .593 | .718 | .843 | 1.000 | 1.125 | – |
| – | – | 15.19 | 15.19 | 18.65 | 18.70 | 28.04 | 34.24 | 40.48 | 40.48 | 54.74 | 54.74 | 64.33 | 76.93 | 89.20 | 104.10 | 115.70 | – |
| 11 | 11.750 | – | – | – | – | – | .375 | – | – | – | .500 | – | – | – | – | – | – |
| – | – | – | – | – | – | – | 45.55 | – | – | – | 60.07 | – | – | – | – | – | – |
| 12 | 12.750 | .156 | .165 | .180 | .180 | .250 | .330 | .375 | .406 | .562 | .500 | .687 | .843 | 1.000 | 1.125 | 1.312 | – |
| – | – | 21.07 | 22.18 | 24.16 | 24.20 | 33.38 | 43.77 | 49.56 | 53.53 | 73.16 | 65.42 | 88.51 | 107.20 | 125.50 | 139.70 | 160.3 | – |
| 14 | 14.000 | .156 | – | .188 | .250 | .312 | .375 | .375 | .437 | .593 | .500 | .750 | .937 | 1.093 | 1.250 | 1.406 | – |
| – | – | 23.07 | – | 27.73 | 36.71 | 45.38 | 54.57 | 54.57 | 63.37 | 84.91 | 72.09 | 106.10 | 130.70 | 150.70 | 170.20 | 189.10 | – |
| 16 | 16.000 | .165 | – | .188 | .250 | .312 | .375 | .375 | .500 | .656 | .500 | .843 | 1.031 | 1.218 | 1.427 | 1.593 | – |
| – | – | 27.90 | – | 31.75 | 42.05 | 52.36 | 62.58 | 62.58 | 82.77 | 107.50 | 82.77 | 136.50 | 164.80 | 192.30 | 223.50 | 245.10 | – |
| 18 | 18.000 | .165 | – | .188 | .250 | .312 | .437 | .375 | .562 | .750 | .500 | .937 | 1.156 | 1.375 | 1.562 | 1.781 | – |
| – | – | 31.43 | – | 35.76 | 47.39 | 59.03 | 82.06 | 70.59 | 104.20 | 138.20 | 93.45 | 170.80 | 208.00 | 244.10 | 274.20 | 308.50 | – |
| 20 | 20.000 | .188 | – | .218 | .250 | .375 | .500 | .375 | .593 | .812 | .500 | 1.031 | 1.280 | 1.500 | 1.750 | 1.968 | – |
| – | – | 39.78 | – | 46.05 | 52.73 | 78.60 | 104.10 | 78.60 | 122.90 | 166.40 | 104.10 | 208.90 | 256.10 | 296.40 | 341.10 | 379.00 | – |
| 22 | 22.000 | .188 | – | .218 | .250 | .375 | .500 | .375 | – | .875 | .500 | 1.125 | 1.375 | 1.625 | 1.875 | 2.125 | – |
| – | – | 43.80 | – | 50.71 | 58.07 | 86.61 | 114.81 | 86.61 | – | 197.41 | 114.81 | 250.81 | 302.88 | 353.61 | 403.00 | 451.06 | – |
| 24 | 24.000 | .218 | – | .250 | .250 | .375 | .562 | .375 | .687 | .968 | .500 | 1.218 | 1.531 | 1.812 | 2.062 | 2.344 | – |
| – | – | 55.37 | – | 63.41 | 63.41 | 94.62 | 140.80 | 94.62 | 171.20 | 238.10 | 125.50 | 296.40 | 367.40 | 429.40 | 483.10 | 542.13 | – |
| 26 | 26.000 | – | – | – | .312 | .500 | – | .375 | – | – | .500 | – | – | – | – | – | – |
| – | – | – | – | – | 85.60 | 136.17 | – | 102.63 | – | – | 136.17 | – | – | – | – | – | – |
| 28 | 28.000 | – | – | – | .312 | .500 | .625 | .375 | – | – | – | – | – | – | – | – | – |
| – | – | – | – | – | 92.26 | 146.85 | 182.73 | 110.64 | – | – | – | – | – | – | – | – | – |
| 30 | 30.000 | .250 | – | .312 | .312 | .500 | .625 | .375 | – | – | .500 | – | – | – | – | – | – |
| – | – | 79.43 | – | 98.93 | 98.93 | 157.53 | 196.08 | 118.65 | – | – | 157.53 | – | – | – | – | – | – |
| 32 | 32.000 | – | – | – | .312 | .500 | .625 | .375 | .688 | – | .500 | – | – | – | – | – | – |
| – | – | – | – | – | 105.59 | 168.21 | 209.43 | 126.66 | 230.08 | – | 168.21 | – | – | – | – | – | – |
| 34 | 34.000 | – | – | – | .312 | .500 | .625 | .375 | .688 | – | – | – | – | – | – | – | – |
| – | – | – | – | – | 112.25 | 178.89 | 222.78 | 134.67 | 244.77 | – | – | – | – | – | – | – | – |
| 36 | 36.000 | – | – | – | .312 | – | .625 | .375 | .750 | – | .500 | – | – | – | – | – | – |
| – | – | – | – | – | 118.92 | – | 236.13 | 142.68 | 282.35 | – | 189.57 | – | – | – | – | – | – |
Notes: Row-1 in each pipe size shows wall thickness (inches). Row-2 shows the associated weight values exactly as provided. “–” indicates not listed.
