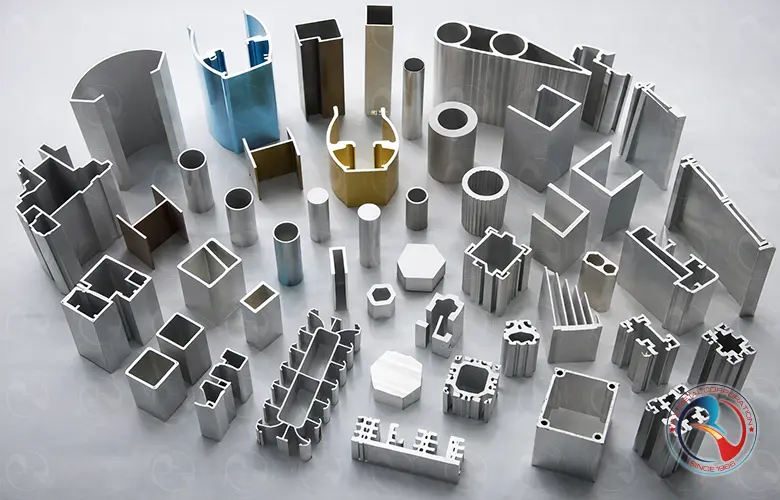

Aluminium Extrusions
Product Overview
Aluminium extrusions are lightweight, corrosion-resistant sections produced by forcing aluminium alloy billets through a precision die to create consistent profiles with excellent strength-to-weight performance. R V Metal Corporation supplies aluminium extrusions for architectural, industrial, electrical, and engineering applications in a wide range of standard and custom profiles such as angles, channels, flats, tubes, tees, and complex multi-void shapes. Our extrusion supply supports common alloy families and tempers (especially 6xxx series) selected for good extrudability, surface finish, weldability, and anodizing compatibility. Depending on the requirement, extrusions can be supplied in mill finish or with downstream processing such as cutting, drilling, machining, deburring, and packaging for safe handling and export movement. With heat/lot traceability and mill test documentation available on request, our aluminium extrusions are suited for fabrication lines that need repeatable dimensions, clean metallurgy, and dependable performance across batches.
Technical Specifications
| Parameter | Specification / Details |
|---|---|
| Product Form | Aluminium Extrusions (Solid, Hollow & Semi-Hollow Profiles) |
| Manufacturing Process | Hot Extrusion from DC-Cast Aluminium Billets |
| Common Alloy Series | 1xxx, 3xxx, 5xxx, 6xxx (6063, 6061, 6082), Selected 7xxx |
| Temper Condition | F, T4, T5, T6 (as applicable) |
| Profile Type | Standard Sections, Custom Shapes, Architectural & Industrial Profiles |
| Thickness Range | As per profile design and customer specification |
| Standard Length | 3000 mm, 4000 mm, 6000 mm (Cut-to-Length Available) |
| Dimensional Tolerance | As per ASTM B221, EN 755, IS 733 or customer requirement |
| Straightness & Twist | Controlled as per applicable international standards |
| Surface Finish | Mill Finish, Anodizing Grade, Powder Coating Grade (on request) |
| Heat Treatment | Solution Heat Treated & Aged (T5 / T6) where applicable |
| Secondary Operations | Cutting, Drilling, Punching, Machining, Bending |
| Standards | ASTM B221, EN 755, EN 573, IS 733 |
| Inspection & Testing | Dimensional Inspection, Chemical Analysis, Visual Inspection |
| Documentation | Mill Test Certificate (EN 10204 3.1), Heat / Lot Traceability |
| Packing | Protective Wrapping, Bundled, Wooden Pallet or Export Seaworthy Packing |
| Typical Applications | Architectural Systems, Industrial Frames, Automotive Components, Electrical & General Engineering |
Chemical Composition
| Alloy Series / Grade | Aluminium (Al) % | Magnesium (Mg) % | Silicon (Si) % | Copper (Cu) % | Zinc (Zn) % | Manganese (Mn) % | Iron (Fe) % | Chromium (Cr) % | Others % (Each / Total) |
|---|---|---|---|---|---|---|---|---|---|
| 1xxx Series (e.g. 1050, 1060) | ≥ 99.0 | ≤ 0.05 | ≤ 0.25 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | ≤ 0.40 | – | 0.03 / 0.10 |
| 3003 (3xxx Series) | Balance | ≤ 0.05 | ≤ 0.60 | ≤ 0.20 | ≤ 0.10 | 1.0 – 1.5 | ≤ 0.70 | – | 0.05 / 0.15 |
| 5052 (5xxx Series) | Balance | 2.2 – 2.8 | ≤ 0.25 | ≤ 0.10 | ≤ 0.10 | ≤ 0.10 | ≤ 0.40 | 0.15 – 0.35 | 0.05 / 0.15 |
| 6063 (6xxx Series) | Balance | 0.45 – 0.90 | 0.20 – 0.60 | ≤ 0.10 | ≤ 0.10 | ≤ 0.10 | ≤ 0.35 | ≤ 0.10 | 0.05 / 0.15 |
| 6061 (6xxx Series) | Balance | 0.80 – 1.20 | 0.40 – 0.80 | 0.15 – 0.40 | ≤ 0.25 | ≤ 0.15 | ≤ 0.70 | 0.04 – 0.35 | 0.05 / 0.15 |
| 6082 (6xxx Series) | Balance | 0.6 – 1.2 | 0.7 – 1.3 | ≤ 0.10 | ≤ 0.20 | 0.4 – 1.0 | ≤ 0.50 | ≤ 0.25 | 0.05 / 0.15 |
| 7075 (7xxx Series) | Balance | 2.1 – 2.9 | ≤ 0.40 | 1.2 – 2.0 | 5.1 – 6.1 | ≤ 0.30 | ≤ 0.50 | 0.18 – 0.28 | 0.05 / 0.15 |
UNS Codes & Grades
| Aluminium Alloy Series | Common Alloy Grade | UNS Designation | EN / European Equivalent | ASTM / AA Designation | Key Characteristics | Typical Extrusion Applications |
|---|---|---|---|---|---|---|
| 1xxx Series | 1050 / 1060 / 1070 | A91050 / A91060 / A91070 | EN AW-1050 / EN AW-1060 | AA 1050 / 1060 / 1070 | High purity, excellent electrical & thermal conductivity | Electrical busbars, heat sinks, simple extrusions |
| 3xxx Series | 3003 / 3005 | A93003 / A93005 | EN AW-3003 / EN AW-3005 | AA 3003 / 3005 | Good corrosion resistance, moderate strength | Heat exchangers, HVAC fins, general-purpose extrusions |
| 5xxx Series | 5052 / 5083 | A95052 / A95083 | EN AW-5052 / EN AW-5083 | AA 5052 / 5083 | Excellent corrosion resistance, good weldability | Marine profiles, transport structures, pressure components |
| 6xxx Series | 6063 | A96063 | EN AW-6063 | AA 6063 | Excellent extrudability, smooth surface finish | Architectural sections, window frames, tubes |
| 6xxx Series | 6061 | A96061 | EN AW-6061 | AA 6061 | Balanced strength, corrosion resistance & machinability | Structural extrusions, frames, industrial profiles |
| 6xxx Series | 6082 | A96082 | EN AW-6082 | AA 6082 | Higher strength than 6061, good toughness | Heavy-duty structural extrusions, transport systems |
| 7xxx Series | 7075 | A97075 | EN AW-7075 | AA 7075 | Very high strength, aerospace-grade alloy | Aerospace components, high-load engineered profiles |
Mechanical, Physical & Fabrication Properties
| Alloy Series / Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Density (g/cm³) | Thermal Conductivity (W/m·K) | Machinability | Weldability | Formability | Typical Fabrication Notes |
|---|---|---|---|---|---|---|---|---|---|
| 1050 / 1060 / 1070 (1xxx) | 70 – 110 | 20 – 35 | 25 – 40 | 2.70 | 220 – 235 | Excellent | Excellent | Excellent | Ideal for bending, deep drawing, and electrical profiles |
| 3003 / 3005 (3xxx) | 130 – 190 | 55 – 95 | 15 – 30 | 2.73 | 190 – 200 | Good | Excellent | Very Good | Commonly used for heat exchangers and HVAC extrusions |
| 5052 / 5083 (5xxx) | 210 – 330 | 90 – 215 | 10 – 25 | 2.66 | 130 – 140 | Fair | Excellent | Good | Preferred for marine, pressure and corrosion-critical profiles |
| 6063 (6xxx) | 170 – 245 | 110 – 215 | 8 – 18 | 2.70 | 200 – 210 | Excellent | Excellent | Excellent | Best surface finish; ideal for anodized architectural extrusions |
| 6061 (6xxx) | 240 – 310 | 145 – 275 | 8 – 17 | 2.70 | 165 – 180 | Very Good | Very Good | Good | Widely used for structural, machined and load-bearing profiles |
| 6082 (6xxx) | 290 – 340 | 250 – 310 | 6 – 14 | 2.70 | 170 – 180 | Good | Good | Moderate | Suited for heavy-duty structural and transport extrusions |
| 7075 (7xxx) | 480 – 560 | 400 – 505 | 5 – 11 | 2.81 | 130 – 135 | Good | Poor | Limited | High-strength aerospace profiles; limited welding & forming |
Common Names & International Identifiers
| Alloy / Grade | Common / Trade Name | UNS Designation | EN / DIN Equivalent | ISO / European Identifier | JIS Equivalent | Typical Industry Reference |
|---|---|---|---|---|---|---|
| 1050 | Commercially Pure Aluminium | A91050 | EN AW-1050A | Al 99.5 | A1050 | Electrical, reflective & general-purpose extrusions |
| 1060 | High Purity Aluminium | A91060 | EN AW-1060 | Al 99.6 | A1060 | Heat exchangers, chemical equipment |
| 1070 | Extra High Purity Aluminium | A91070 | EN AW-1070A | Al 99.7 | A1070 | Electrical conductors & precision profiles |
| 3003 | Manganese Aluminium Alloy | A93003 | EN AW-3003 | AlMn1Cu | A3003 | HVAC, radiator and heat-transfer extrusions |
| 3005 | Structural Manganese Aluminium | A93005 | EN AW-3005 | AlMn1Mg0.5 | A3005 | Architectural & building profiles |
| 5052 | Marine Aluminium Alloy | A95052 | EN AW-5052 | AlMg2.5 | A5052 | Marine, pressure and corrosion-resistant extrusions |
| 5083 | High Strength Marine Aluminium | A95083 | EN AW-5083 | AlMg4.5Mn | A5083 | Shipbuilding, offshore & transport profiles |
| 6063 | Architectural Aluminium | A96063 | EN AW-6063 | AlMg0.7Si | A6063 | Anodized windows, doors & decorative extrusions |
| 6061 | Structural Aluminium Alloy | A96061 | EN AW-6061 | AlMg1SiCu | A6061 | Load-bearing, machined & industrial profiles |
| 6082 | High Strength Structural Aluminium | A96082 | EN AW-6082 | AlMgSi1 | A6082 | Heavy-duty construction & transport extrusions |
| 7075 | Aerospace Aluminium Alloy | A97075 | EN AW-7075 | AlZn5.5MgCu | A7075 | Aerospace, defense & high-strength profiles |
Standards & International Equivalents
| Aluminium Alloy / Series | ASTM / AA (USA) | EN / DIN (Europe) | ISO Standard | BS (UK) | JIS (Japan) | GB (China) | Typical Usage Reference |
|---|---|---|---|---|---|---|---|
| 1xxx Series (1050 / 1060 / 1070) | ASTM B221 / AA 1050–1070 | EN 573 / EN 515 / EN AW-1050A, 1060, 1070 | ISO 6361 | BS EN 573 | JIS H4040 (A1050 / A1060 / A1070) | GB/T 3190 | Electrical, heat exchangers, general extrusions |
| 3xxx Series (3003 / 3005) | ASTM B221 / AA 3003, 3005 | EN AW-3003, EN AW-3005 | ISO 6361 | BS EN 515 | JIS H4040 (A3003 / A3005) | GB/T 3190 | HVAC, radiators, architectural profiles |
| 5xxx Series (5052 / 5083) | ASTM B221 / AA 5052, 5083 | EN AW-5052, EN AW-5083 | ISO 6361 | BS EN 515 | JIS H4040 (A5052 / A5083) | GB/T 3190 | Marine, corrosion-resistant extrusions |
| 6xxx Series (6061 / 6063 / 6082) | ASTM B221 / AA 6061, 6063, 6082 | EN AW-6061, EN AW-6063, EN AW-6082 | ISO 6361 | BS EN 515 | JIS H4040 (A6061 / A6063 / A6082) | GB/T 3190 | Structural, architectural & industrial extrusions |
| 7xxx Series (7075) | ASTM B221 / AA 7075 | EN AW-7075 | ISO 6361 | BS EN 515 | JIS H4040 (A7075) | GB/T 3190 | Aerospace, defense & high-strength profiles |
| General Extrusion Tolerances | ASTM B221 / B308 | EN 12020 / EN 755 | ISO 2768 | BS EN 12020 | JIS H4100 | GB/T 6892 | Dimensional & shape tolerances for extrusions |
| Surface Finish & Anodizing | MIL-A-8625 | EN ISO 7599 | ISO 7599 | BS EN ISO 7599 | JIS H8601 | GB/T 8013 | Anodized & architectural finish compliance |
Applications
| Industry / Sector | Application Area | Typical Aluminium Alloys Used | Key Advantages of Aluminium Extrusions |
|---|---|---|---|
| Architecture & Construction | Window frames, door systems, curtain walls, railings, louvers | 6063, 6061, 6082 | Excellent surface finish, corrosion resistance, lightweight, design flexibility |
| Infrastructure | Bridges, walkways, noise barriers, handrails | 6061, 6082, 5083 | High strength-to-weight ratio, long service life, low maintenance |
| Automotive | Chassis components, crash management systems, roof rails | 6061, 6005, 6082 | Weight reduction, improved fuel efficiency, good machinability |
| Railways & Metro | Coach bodies, flooring systems, interior panels | 6005A, 6082, 6061 | High structural integrity, vibration resistance, corrosion resistance |
| Aerospace | Structural profiles, seat tracks, support frames | 7075, 2024, 6061 | High strength, precision extrusion capability, lightweight |
| Electrical & Electronics | Heat sinks, enclosures, cable trays | 6063, 1050, 1070 | Excellent thermal conductivity, easy extrusion of complex profiles |
| Solar & Renewable Energy | Solar panel frames, mounting structures | 6063, 6005 | Weather resistance, ease of installation, recyclability |
| Industrial Machinery | Machine frames, guards, automation profiles | 6061, 6082 | Modular design, strength, ease of assembly |
| Marine | Boat structures, decking supports, ladders | 5083, 5052, 6061 | Excellent corrosion resistance in seawater environments |
| Furniture & Interior Design | Modular furniture, partitions, display systems | 6063, 6061 | Aesthetic appeal, lightweight, customizable profiles |
| HVAC & Heat Transfer | Heat exchanger frames, ducting systems | 3003, 6063 | Good thermal performance, corrosion resistance |
| Defense & Heavy Engineering | Armored structures, support frames, transport systems | 7075, 6082 | High strength, durability, precision manufacturing |
Common Aluminium Extrusions – Sizes & Theoretical Weight Chart
| Profile Type | Nominal Size (mm) | Wall Thickness (mm) | Cross Section Area (mm²) | Theoretical Weight (kg/m) | Common Alloy Series | Typical Applications |
|---|---|---|---|---|---|---|
| Square Extrusion | 20 × 20 | 1.5 | 111 | 0.30 | 6063 / 6061 | Frames, light structures |
| Square Extrusion | 40 × 40 | 2.0 | 304 | 0.82 | 6063 / 6061 | Industrial framing, furniture |
| Rectangular Extrusion | 50 × 25 | 2.0 | 292 | 0.79 | 6063 / 6082 | Structural supports, panels |
| Rectangular Extrusion | 75 × 50 | 3.0 | 684 | 1.85 | 6061 / 6082 | Load-bearing structures |
| Round Tube Extrusion | Ø25 | 1.5 | 110 | 0.30 | 6063 | HVAC, railings |
| Round Tube Extrusion | Ø50 | 2.5 | 373 | 1.01 | 6061 / 6063 | Architectural, automotive |
| Flat / Strip Extrusion | 50 × 5 | — | 250 | 0.68 | 6061 / 6082 | Brackets, mounting plates |
| Flat / Strip Extrusion | 100 × 10 | — | 1000 | 2.70 | 6061 / 6082 | Heavy-duty supports |
| T-Slot Extrusion | 40 × 40 | — | 540 | 1.46 | 6063-T5 | Automation frames, conveyors |
| Custom Profile | As per drawing | As specified | As calculated | As calculated | 6063 / 6061 / 6082 | OEM & precision extrusion parts |
Note: Weights shown are theoretical and calculated using a standard aluminium density of 2.70 g/cm³. Actual weight may vary depending on alloy, temper, profile complexity, and dimensional tolerances.
Theoretical Weight Formula:
Weight (kg/m) = Cross-sectional Area (mm²) × 2.70 / 1000
