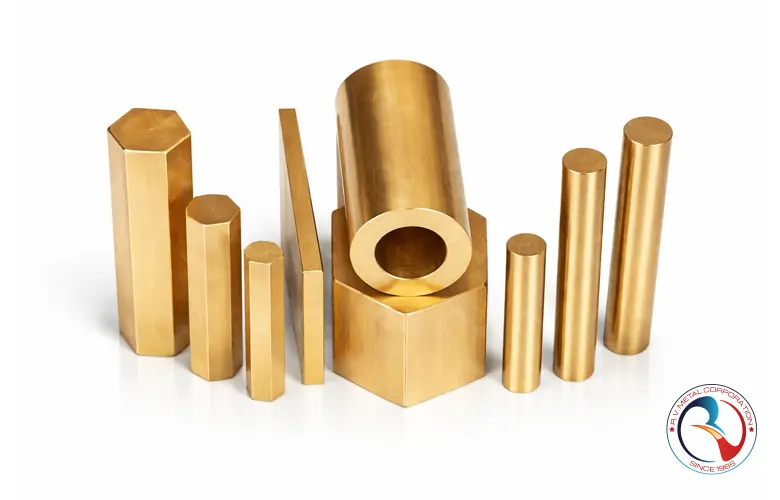

Forging Brass Rods (Hot Forging Grades)
Product Overview
Forging Brass Rods supplied by R V Metal Corporation are specifically manufactured for hot forging, precision forging, and closed-die forging applications where high strength, excellent hot workability, and dimensional consistency are critical. Produced from carefully controlled copper-zinc alloys with optional lead, aluminium, manganese, or silicon additions, these rods offer superior resistance to cracking, excellent metal flow under forging temperatures, and consistent grain structure after deformation. Our forging brass rods are widely used in the production of valves, plumbing components, electrical fittings, automotive parts, fasteners, and heavy-duty industrial hardware, where reliability under thermal and mechanical stress is non-negotiable.
Available in round, hexagonal, square, and custom profiles, R V Metal Corporation’s forging brass rods are supplied in hot-extruded or hot-rolled condition with tight chemical and dimensional tolerances to meet ASTM, EN, IS, and OEM-specific forging standards. These rods are engineered to minimize die wear, reduce forging defects, and improve tool life, making them the preferred choice for high-volume forging operations, CNC-assisted forging lines, and export-oriented manufacturers demanding repeatable performance and traceability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Forging Brass Rods (Hot Forging Grades) |
| Manufacturing Process | Hot Extruded / Hot Rolled / Continuous Cast & Hot Worked |
| Applicable Grades | CuZn39Pb2, CuZn40Pb2, CuZn37Mn3Al2Fe1, CuZn40Mn2Pb2, CuZn38Al2, Custom Forging Alloys |
| UNS / EN / IS Designations | CW602N, CW617N, CW713R, C37700, C38500, IS 319 (Type I / Type II – Forging) |
| Form Supplied | Round, Hexagonal, Square, Rectangular, Custom Profiles |
| Diameter / Across Flats Range | Ø 8 mm to Ø 150 mm / AF 10 mm to AF 120 mm (custom sizes on request) |
| Standard Length | 3 m, 4 m, 5 m, 6 m or Cut-to-Length |
| Surface Finish | As-Extruded / Peeled / Turned / Shot Blasted (for forging cleanliness) |
| Typical Forging Temperature Range | 650°C – 780°C (alloy dependent) |
| Hot Workability | Excellent – Designed for high metal flow with low cracking tendency |
| Grain Structure | Uniform, fine grain suitable for closed-die and precision forging |
| Mechanical Condition | Hot Worked (H), Annealed (A) on request |
| Dimensional Tolerances | As per EN 12164 / ASTM B16 / IS 319 or tighter OEM-specific tolerances |
| Straightness | ≤ 1/1000 of length |
| Chemical Control | Spectrometer verified, batch-wise traceability |
| Machining Allowance | Optimized for forging flash and post-forging machining |
| Inspection & Testing | Chemical Analysis, Dimensional Inspection, Visual & Surface Defect Check |
| Certifications | Mill Test Certificate (EN 10204 3.1), RoHS / REACH (on request) |
| Typical Applications | Valves, Plumbing Forgings, Automotive Parts, Electrical Hardware, Industrial Fittings |
Chemical Composition
| Grade / Alloy | Standard Designation | Copper (Cu) % | Zinc (Zn) % | Lead (Pb) % | Tin (Sn) % | Aluminium (Al) % | Manganese (Mn) % | Iron (Fe) % | Other Elements % |
|---|---|---|---|---|---|---|---|---|---|
| CW617N | EN 12164 / IS 319 Type II | 57.0 – 59.0 | Balance | 1.6 – 2.5 | ≤ 0.3 | ≤ 0.05 | ≤ 0.3 | ≤ 0.3 | ≤ 0.2 |
| CW602N (DZR) | EN 12164 / EN 12165 | 60.0 – 63.0 | Balance | ≤ 0.1 | 0.2 – 0.4 | ≤ 0.02 | ≤ 0.2 | ≤ 0.2 | As ≤ 0.15 |
| CuZn39Pb2 | EN 12164 | 58.0 – 60.0 | Balance | 1.5 – 2.5 | ≤ 0.3 | ≤ 0.05 | ≤ 0.3 | ≤ 0.3 | ≤ 0.2 |
| CuZn40Pb2 | EN 12164 | 57.0 – 59.0 | Balance | 1.5 – 2.5 | ≤ 0.3 | ≤ 0.05 | ≤ 0.3 | ≤ 0.3 | ≤ 0.2 |
| CuZn37Mn3Al2Fe1 | EN Special Forging Alloy | 58.0 – 61.0 | Balance | ≤ 0.1 | ≤ 0.2 | 1.5 – 2.5 | 2.0 – 3.5 | 0.5 – 1.5 | ≤ 0.3 |
| C37700 | ASTM B124 / B453 | 57.0 – 61.0 | Balance | 1.5 – 2.5 | ≤ 0.3 | ≤ 0.05 | ≤ 0.3 | ≤ 0.3 | ≤ 0.2 |
| C38500 (Free Forging) | ASTM B16 / B453 | 57.0 – 61.0 | Balance | 2.5 – 3.5 | ≤ 0.3 | ≤ 0.05 | ≤ 0.3 | ≤ 0.3 | ≤ 0.2 |
UNS Codes & Grades
| UNS Code | EN / DIN Grade | Common Name | Lead Content | Key Alloying Elements | Typical Forging Use |
|---|---|---|---|---|---|
| C37700 | CW617N | Hot Forging Brass | 1.6 – 2.5% | Cu–Zn–Pb | Valves, plumbing fittings, gas fittings |
| C38500 | CuZn39Pb3 | Free Forging Brass | 2.5 – 3.5% | Cu–Zn–Pb | High-speed forged parts, complex shapes |
| C35300 | CuZn40Pb2 | Standard Forging Brass | 1.5 – 2.5% | Cu–Zn–Pb | Automotive forgings, connectors |
| C27450 | CW602N | DZR Forging Brass | ≤ 0.1% | Cu–Zn–Sn–As | Potable water valves, marine fittings |
| C46400 | CuZn39Sn1 | Naval Forging Brass | ≤ 0.1% | Cu–Zn–Sn | Marine hardware, corrosion-prone forgings |
| C67300 | CuZn37Mn3Al2Fe1 | High Strength Forging Brass | ≤ 0.1% | Cu–Zn–Mn–Al–Fe | Automotive, heavy-duty forged components |
| C67800 | Special Mn-Al Brass | Extra High Strength Brass | ≤ 0.1% | Cu–Zn–Mn–Al | Structural forgings, load-bearing parts |
| C68000 | EN Special Alloy | Lead-Free Forging Brass | ≤ 0.1% | Cu–Zn–Si / Cu–Zn–Sn | Eco-compliant plumbing & OEM forgings |
Mechanical, Physical & Fabrication Properties
| Property | C37700 / CW617N | C38500 | CW602N (DZR) | C46400 (Naval Brass) | Mn–Al High Strength Brass |
|---|---|---|---|---|---|
| Typical Tensile Strength (MPa) | 440 – 540 | 420 – 520 | 500 – 600 | 520 – 620 | 650 – 750 |
| Yield Strength (MPa) | 180 – 250 | 170 – 240 | 220 – 300 | 250 – 320 | 350 – 450 |
| Elongation (%) | 20 – 30 | 18 – 28 | 18 – 25 | 15 – 22 | 10 – 18 |
| Hardness (HB) | 90 – 130 | 85 – 125 | 110 – 150 | 130 – 160 | 160 – 220 |
| Density (g/cm³) | 8.40 | 8.45 | 8.35 | 8.50 | 7.90 – 8.10 |
| Hot Forging Temperature (°C) | 650 – 750 | 650 – 740 | 680 – 780 | 700 – 800 | 720 – 850 |
| Forgeability | Excellent | Excellent | Very Good | Good | Moderate |
| Machinability (%) | 90 – 100 | 100 | 60 – 70 | 50 – 60 | 30 – 45 |
| Hot Cracking Resistance | High | High | Very High | Very High | Moderate |
| Dezincification Resistance | Low | Low | Excellent | Excellent | Good |
| Typical Forged Products | Valves, fittings | Complex machined forgings | Potable water valves | Marine hardware | Automotive & load-bearing parts |
Common Names & International Identifiers
| Common / Trade Name | UNS Code | EN / DIN Designation | IS Standard | BS Standard | JIS Standard | Typical Use Reference |
|---|---|---|---|---|---|---|
| Hot Forging Brass | C37700 | CW617N | IS 319 Type 2 | BS CZ122 | C3771 | General valve & plumbing forgings |
| Forging Quality Brass | C38500 | CW614N | IS 319 Type 1 | BS CZ121 | C3604 | High machinability forged parts |
| DZR Forging Brass | C35200 | CW602N | IS 318 DZ | BS CZ132 | — | Potable water & corrosion-critical valves |
| Naval Forging Brass | C46400 | CW626N | IS 291 Grade 1 | BS CZ112 | — | Marine, offshore & seawater hardware |
| High Tensile Brass (Mn–Al) | C67300 / C67400 | CW713R | — | — | — | High load & automotive forged components |
| Lead-Free Forging Brass | C69300 | CW724R | — | — | — | Eco-compliant potable water systems |
Standards & International Equivalents
| Material Type | UNS (USA) | EN / DIN (Europe) | IS (India) | BS (UK) | ASTM | JIS (Japan) | Typical Forging Applications |
|---|---|---|---|---|---|---|---|
| Standard Hot Forging Brass | C37700 | CW617N | IS 319 Type 2 | BS CZ122 | ASTM B124 / B124M | JIS C3771 | Valves, plumbing fittings, connectors |
| Free Cutting Forging Brass | C38500 | CW614N | IS 319 Type 1 | BS CZ121 | ASTM B16 / B124 | JIS C3604 | Machined forged components |
| DZR Forging Brass | C35200 | CW602N | IS 318 DZ | BS CZ132 | ASTM B455 | — | Potable water & corrosion-resistant valves |
| Naval Forging Brass | C46400 | CW626N | IS 291 Grade 1 | BS CZ112 | ASTM B21 / B124 | — | Marine, seawater & offshore forgings |
| High Tensile Brass (Mn-Al Alloy) | C67300 / C67400 | CW713R | — | — | ASTM B150 | — | High-load & structural forged parts |
| Lead-Free Forging Brass | C69300 | CW724R | — | — | ASTM B283 | — | Eco-compliant potable water components |
Applications
| Forging Brass Grade | Key Alloy Characteristics | Typical Forged Components | Industries Served | Why This Grade Is Used |
|---|---|---|---|---|
| CW617N / C37700 | Excellent hot forgeability, good strength, moderate corrosion resistance | Ball valves, gate valves, elbows, tees, couplings, adapters | Plumbing, HVAC, Firefighting | Best balance of forgeability, pressure strength and cost |
| CW614N / C38500 | High machinability due to lead content | Precision machined forged fittings, threaded parts | Plumbing hardware, gas fittings | Reduced tool wear and faster post-forging machining |
| CW602N (DZR Brass) | Dezincification resistant, stable in aggressive water | Potable water valves, metering components, manifolds | Water supply, utilities, infrastructure | Mandatory for chlorinated & high-salinity water systems |
| CW626N / C46400 (Naval Brass) | High strength, tin-enhanced corrosion resistance | Marine valves, seawater fittings, offshore connectors | Marine, shipbuilding, offshore platforms | Superior resistance to seawater and stress corrosion |
| C67300 / C67400 (High Tensile Brass) | High tensile strength, excellent fatigue resistance | Structural forged parts, high-load connectors | Heavy engineering, power, railways | Used where brass must replace steel due to corrosion needs |
| C69300 (Lead-Free Brass) | Low lead, eco-compliant, good mechanical properties | Drinking water fittings, sanitary hardware | Potable water, green building projects | Meets RoHS, NSF, and drinking water regulations |
Standard Forging Brass Rods (Hot Forging Grades) Dimensional Chart
| Forging Brass Rods (Hot Forging Grades) – Standard Dimensional & Theoretical Weight Chart | ||||||
|---|---|---|---|---|---|---|
| Form | Standard Size Range | Typical Length | Unit Weight Formula (Reference) | Density Used | Example Size | Theoretical Weight |
| Round Rod | Ø 6 mm to Ø 150 mm | 3 m / 4 m / 5 m / 6 m | kg/m = (ز × 0.00616) | 8.40 g/cm³ | Ø 25 mm | 3.85 kg/m |
| Round Rod | Ø 6 mm to Ø 150 mm | 3 m / 4 m / 5 m / 6 m | kg/m = (ز × 0.00616) | 8.40 g/cm³ | Ø 50 mm | 15.40 kg/m |
| Round Rod | Ø 6 mm to Ø 150 mm | 3 m / 4 m / 5 m / 6 m | kg/m = (ز × 0.00616) | 8.40 g/cm³ | Ø 75 mm | 34.65 kg/m |
| Hex Rod (Across Flats) | AF 8 mm to AF 85 mm | 3 m / 4 m / 5 m / 6 m | kg/m = (AF² × 0.00639) | 8.40 g/cm³ | AF 20 mm | 2.56 kg/m |
| Hex Rod (Across Flats) | AF 8 mm to AF 85 mm | 3 m / 4 m / 5 m / 6 m | kg/m = (AF² × 0.00639) | 8.40 g/cm³ | AF 30 mm | 5.75 kg/m |
| Square Rod | 8 × 8 mm to 80 × 80 mm | 3 m / 4 m / 5 m / 6 m | kg/m = (W × W × 0.00840) | 8.40 g/cm³ | 20 × 20 mm | 3.36 kg/m |
| Square Rod | 8 × 8 mm to 80 × 80 mm | 3 m / 4 m / 5 m / 6 m | kg/m = (W × W × 0.00840) | 8.40 g/cm³ | 40 × 40 mm | 13.44 kg/m |
| Flat (Bar) | 10 × 3 mm to 150 × 25 mm | 3 m / 4 m / 5 m / 6 m | kg/m = (W × T × 0.00840) | 8.40 g/cm³ | 50 × 10 mm | 4.20 kg/m |
| Flat (Bar) | 10 × 3 mm to 150 × 25 mm | 3 m / 4 m / 5 m / 6 m | kg/m = (W × T × 0.00840) | 8.40 g/cm³ | 100 × 12 mm | 10.08 kg/m |
| Notes (EPC / Consultant Grade) | |||
|---|---|---|---|
| 1) Weight Basis | Weights shown are theoretical and may vary with alloy chemistry, tolerance, surface condition and straightness. | ||
| 2) Density Assumption | Density assumed at 8.40 g/cm³ (typical forging brass range ~8.35–8.55 g/cm³). For contract-critical projects, weight should be recalculated per heat/grade. | ||
| 3) Supply Conditions | Available in extruded and cold-drawn conditions; straightness and machining allowance should be defined in PO for CNC/forging dies. | ||
| 4) Cut Length Tolerance | Standard commercial cut tolerance applies unless specified; for automatic forging lines, specify tight cut length tolerance and end squareness. | ||
