Name: Aluminium Pipes & Tubes
Brand: R V Metal Corporation

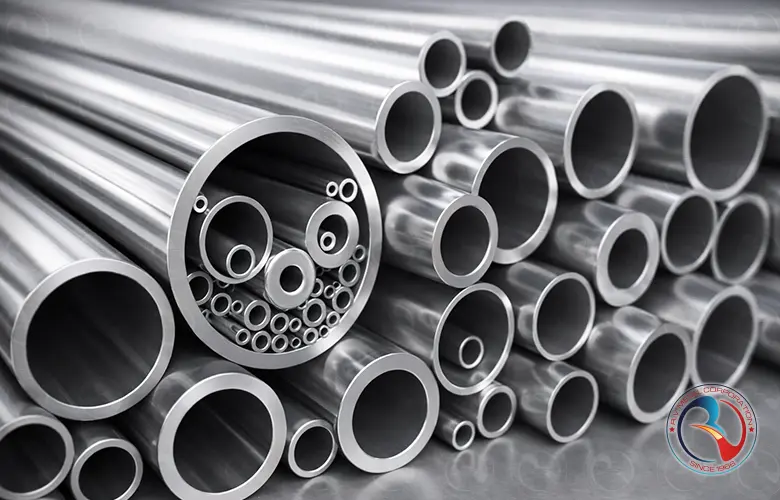

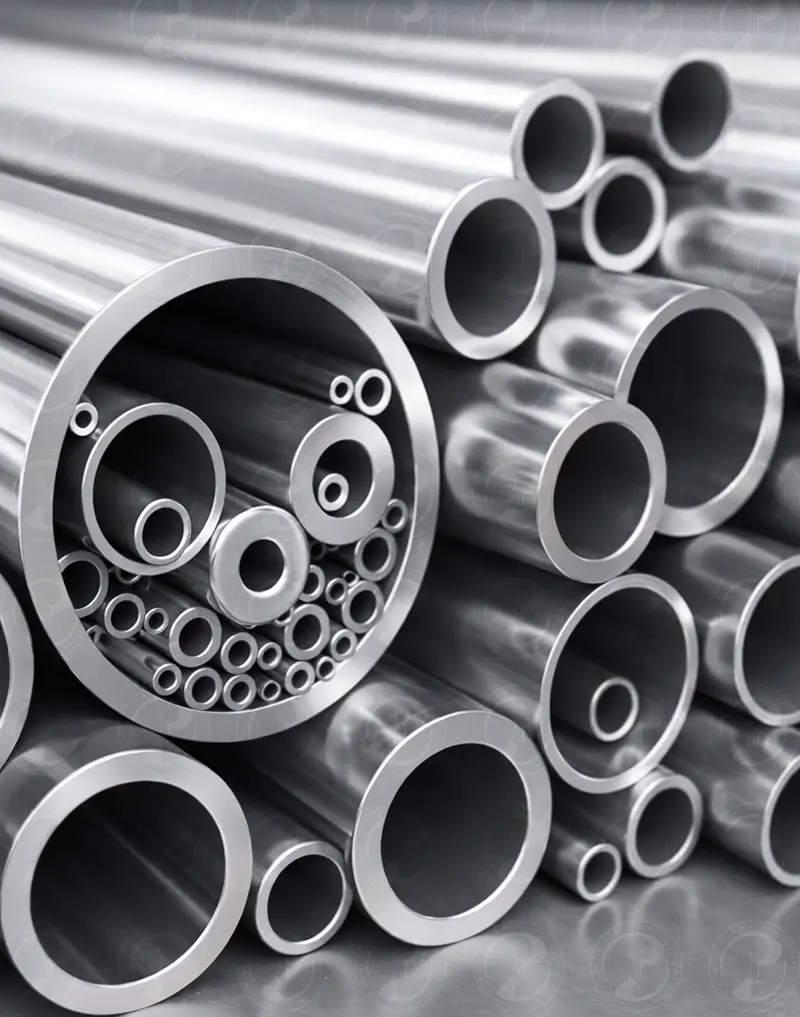

Aluminium Pipes & Tubes

Product Overview

Aluminium Pipes & Tubes offered by R V Metal Corporation are engineered for lightweight strength, excellent corrosion resistance, and superior formability, making them ideal for a wide range of industrial and commercial applications. Manufactured from high-quality aluminium alloys, these pipes and tubes provide an optimal balance between mechanical performance and weight reduction, which is critical in industries such as aerospace, automotive, marine, construction, HVAC, and general engineering. Their natural resistance to oxidation, along with options for anodized or coated finishes, ensures long service life even in aggressive or outdoor environments.

Available in seamless and welded constructions, Aluminium Pipes & Tubes can be supplied in round, square, rectangular, and custom profiles with precise dimensional control. They offer excellent thermal and electrical conductivity, ease of machining, and high recyclability, making them both technically efficient and environmentally responsible. R V Metal Corporation supplies aluminium pipes and tubes in standard and customized sizes, lengths, tempers, and alloy grades to meet diverse project specifications, international standards, and performance requirements across global markets.

Technical Specifications

Specification Parameter	Details
Product Type	Aluminium Pipes & Tubes
Manufacturing Process	Seamless / Welded / Extruded
Forms Available	Round, Square, Rectangular, Oval, Custom Profiles
Outer Diameter (OD)	6 mm to 610 mm (Custom sizes available)
Wall Thickness	0.5 mm to 25 mm
Length	Standard 3 m, 6 m, Cut-to-Length as per requirement
Aluminium Alloys	1100, 2014, 2024, 3003, 5052, 5083, 6061, 6063, 6082, 7075
Temper Conditions	O, H12, H14, H16, H18, T4, T5, T6
Standards	ASTM B210, ASTM B241, ASTM B345, EN 755, EN 573, IS 733, IS 1285
Surface Finish	Mill Finish, Anodized, Polished, Powder Coated, Painted
Tolerance	As per ASTM / EN / IS Standards
Corrosion Resistance	Excellent, especially in marine and atmospheric environments
Density	Approx. 2.70 g/cm³ (varies slightly by alloy)
Certification	Mill Test Certificate (EN 10204 3.1), Chemical & Mechanical Reports
Packing	Bundled, Wooden Crates, Palletized, Export Seaworthy Packing
Supply Condition	As Extruded / Heat Treated / Finished
Applications	Aerospace, Automotive, Marine, HVAC, Structural, Electrical, General Engineering

Chemical Composition

Aluminium Alloy	Al (%)	Cu (%)	Mg (%)	Mn (%)	Si (%)	Fe (%)	Zn (%)	Cr (%)	Others (%)
1100	≥ 99.00	0.05–0.20	–	0.05	0.95	0.95	0.10	–	0.15
3003	Balance	0.05–0.20	–	1.00–1.50	0.60	0.70	0.10	–	0.15
5052	Balance	0.10	2.20–2.80	0.10	0.25	0.40	0.10	0.15–0.35	0.15
5083	Balance	0.10	4.00–4.90	0.40–1.00	0.40	0.40	0.25	0.05–0.25	0.15
6061	Balance	0.15–0.40	0.80–1.20	0.15	0.40–0.80	0.70	0.25	0.04–0.35	0.15
6063	Balance	0.10	0.45–0.90	0.10	0.20–0.60	0.35	0.10	0.10	0.15
6082	Balance	0.10	0.60–1.20	0.40–1.00	0.70–1.30	0.50	0.20	0.25	0.15
7075	Balance	1.20–2.00	2.10–2.90	0.30	0.40	0.50	5.10–6.10	0.18–0.28	0.15

UNS Codes & Grades

Aluminium Grade	UNS Code	Series	Common Designation / Name	Typical Applications
1100	A91100	1xxx	Commercially Pure Aluminium	Heat exchangers, chemical equipment, food processing pipes
1200	A91200	1xxx	Pure Aluminium	Electrical, architectural, light-duty tubing
3003	A93003	3xxx	Al-Mn Alloy	HVAC tubes, radiators, general fabrication
3004	A93004	3xxx	Al-Mn-Mg Alloy	Pressure vessels, piping, structural tubing
3102	A93102	3xxx	Aluminium-Manganese Alloy	Mechanical tubes, automotive applications
5052	A95052	5xxx	Al-Mg Alloy	Marine pipes, fuel lines, hydraulic tubing
5083	A95083	5xxx	High Magnesium Marine Alloy	Shipbuilding, offshore structures, pressure pipes
5086	A95086	5xxx	Marine Grade Aluminium	Marine piping, cryogenic applications
6061	A96061	6xxx	Al-Mg-Si Structural Alloy	Structural tubes, pipelines, mechanical systems
6063	A96063	6xxx	Architectural Aluminium	Architectural tubing, decorative pipes
6082	A96082	6xxx	High-Strength Structural Alloy	Heavy-duty structural and load-bearing pipes
7075	A97075	7xxx	Al-Zn-Mg-Cu Alloy	Aerospace tubes, high-stress mechanical piping

Mechanical, Physical & Fabrication Properties

Property	Typical Values / Characteristics	Remarks for Pipes & Tubes
Tensile Strength	70 – 570 MPa (grade dependent)	Lower for 1xxx & 3xxx series, higher for 6xxx & 7xxx series
Yield Strength	30 – 500 MPa	Improves significantly with heat treatment (e.g., T6)
Elongation	8% – 40%	Excellent ductility in annealed and soft tempers
Hardness	20 – 160 HB (Brinell)	Depends on alloy series and temper condition
Density	≈ 2.70 g/cm³	About one-third the weight of steel
Melting Point	~ 660°C	Lower melting point aids extrusion and fabrication
Thermal Conductivity	120 – 235 W/m·K	Excellent for heat exchangers and HVAC tubing
Electrical Conductivity	35 – 65% IACS	High in pure aluminium grades (1xxx series)
Corrosion Resistance	Very Good to Excellent	Enhanced by natural oxide layer; superior in marine alloys
Weldability	Excellent (1xxx, 3xxx, 5xxx, 6xxx)	Common methods: TIG, MIG; 7xxx requires care
Formability	Excellent	Ideal for bending, flaring, and cold forming of tubes
Machinability	Good to Very Good	Best in 6xxx series; use sharp tools
Heat Treatability	Applicable to 6xxx & 7xxx series	Allows strength optimization for pressure applications
Recyclability	100% Recyclable	No loss of mechanical properties after recycling

Common Names & International Identifiers

Aluminium Alloy Series / Grade	Common / Trade Names	UNS Designation	EN / ISO Designation	JIS Designation	Other International Identifiers
1050	Commercial Pure Aluminium	A91050	EN AW-1050A	A1050	ISO Al 99.5
1060	Electrical Grade Aluminium	A91060	EN AW-1060	A1060	ISO Al 99.6
1100	Commercially Pure Aluminium	A91100	EN AW-1100	A1100	ISO Al 99.0
3003	Aluminium Manganese Alloy	A93003	EN AW-3003	A3003	ISO AlMn1Cu
3004	Medium Strength Al-Mn Alloy	A93004	EN AW-3004	A3004	ISO AlMn1Mg1
5052	Marine Grade Aluminium	A95052	EN AW-5052	A5052	ISO AlMg2.5
5083	High Strength Marine Aluminium	A95083	EN AW-5083	A5083	ISO AlMg4.5Mn
6061	Structural Aluminium Alloy	A96061	EN AW-6061	A6061	ISO AlMg1SiCu
6063	Architectural Aluminium	A96063	EN AW-6063	A6063	ISO AlMg0.7Si
6082	High Strength Extrusion Alloy	A96082	EN AW-6082	–	ISO AlMgSi1
7075	Aerospace Aluminium Alloy	A97075	EN AW-7075	A7075	ISO AlZn5.5MgCu

Standards & International Equivalents

Standard Body	Standard Number	Scope / Description	Equivalent / Related Standards	Common Usage
ASTM	ASTM B210	Seamless Aluminium and Aluminium-Alloy Tubes	EN 754, ISO 6361	Heat exchangers, condensers, structural tubes
ASTM	ASTM B221	Extruded Aluminium Bars, Rods, Pipes & Profiles	EN 755, ISO 6362	Structural and architectural applications
ASTM	ASTM B241 / B241M	Seamless Aluminium Alloy Pipe & Tube	EN 573, ISO 6363	Pressure and mechanical tubing
EN (Europe)	EN 754	Aluminium & Aluminium Alloys – Drawn Tubes	ASTM B210, ISO 6361	Precision tubes and heat transfer systems
EN (Europe)	EN 755	Extruded Aluminium Tubes & Profiles	ASTM B221, ISO 6362	Structural and general engineering use
ISO	ISO 6361	Wrought Aluminium Alloy Tubes	ASTM B210, EN 754	Industrial and mechanical tubing
ISO	ISO 6362	Extruded Aluminium Alloy Pipes & Tubes	ASTM B221, EN 755	Structural and load-bearing applications
JIS (Japan)	JIS H4080	Aluminium & Aluminium Alloy Tubes	ASTM B210, EN 754	Automotive and HVAC tubing
JIS (Japan)	JIS H4040	Extruded Aluminium Pipes & Profiles	ASTM B221, EN 755	Architectural and industrial use
DIN (Germany)	DIN 1748 / DIN 1725	Wrought Aluminium Pipes & Tubes	EN 754, ISO 6361	Engineering and fabrication
GB (China)	GB/T 4437	Aluminium Alloy Extruded Tubes	ASTM B221, EN 755	Industrial and structural tubing

Applications

Industry / Sector	Application Area	Typical Aluminium Grades Used	Why Aluminium Pipes & Tubes Are Preferred
HVAC & Refrigeration	Heat exchanger tubes, condenser lines, air-conditioning systems	6063, 3003, 6061	Excellent thermal conductivity, lightweight, corrosion resistance
Automotive	Fuel lines, coolant pipes, structural tubing	6061, 6082, 3003	Weight reduction, good strength-to-weight ratio, easy formability
Aerospace	Hydraulic lines, structural components	6061, 7075	High strength, low weight, excellent fatigue resistance
Construction & Architecture	Handrails, scaffolding, frameworks, facades	6063, 6061	Corrosion resistance, aesthetic finish, easy fabrication
Marine & Offshore	Piping systems, boat structures	5083, 6061	Excellent seawater corrosion resistance, lightweight
Industrial Engineering	Compressed air lines, process piping	6061, 6082	High pressure capability, machinability, durability
Electrical & Power	Conduit pipes, cable protection systems	6063, 6061	Non-magnetic, corrosion resistant, easy installation
Furniture & Interiors	Frames, decorative tubing, modular furniture	6063	Lightweight, smooth surface finish, design flexibility
Food & Beverage	Processing lines, transfer tubes	3003, 6061	Hygienic surface, corrosion resistance, easy cleaning
Renewable Energy	Solar panel frames, support tubing	6063, 6082	Weather resistance, lightweight, long service life

Common Aluminium Pipes & Tubes Dimensions Chart

Nominal Size (OD)	Outside Diameter (mm)	Wall Thickness (mm)	Inside Diameter (mm)	Theoretical Weight (Kg/Mtr)	Typical Applications
1/2"	12.7	1.2	10.3	0.12	HVAC, instrumentation lines
3/4"	19.05	1.6	15.85	0.25	Air-conditioning, fuel lines
1"	25.4	2.0	21.4	0.43	Process piping, automotive
1 1/4"	31.75	2.5	26.75	0.68	Structural & industrial tubing
1 1/2"	38.10	3.0	32.10	0.97	Marine, construction frameworks
2"	50.80	3.0	44.80	1.32	Compressed air, water lines
2 1/2"	63.50	3.5	56.50	1.90	Industrial piping systems
3"	76.20	4.0	68.20	2.60	Structural & heavy-duty use
4"	101.60	4.5	92.60	4.10	Marine, chemical & power plants
6"	152.40	5.0	142.40	6.70	Large diameter industrial pipelines

Calculation Basis	Details
Density Used	2.70 g/cm³ (Typical Aluminium Alloys)
Formula	Weight (Kg/Mtr) = (π / 4) × (OD² − ID²) × Density × 10⁻⁶
Note	Weights are theoretical and may vary slightly based on alloy grade, temper, and manufacturing tolerance.

Nom Size	Outside Dia (D) mm	Sch 10S (mm)	Sch 10 (mm)	Sch 40			Sch 80		Metric Size (NB)
Nom Size	Outside Dia (D) mm	Sch 10S (mm)	Sch 10 (mm)	Sch 40S (mm)	STD (mm)	Sch 40 (mm)	Sch 80S (mm)	Sch 80 (mm)	Metric Size (NB)
1/4"	13.72	1.65		2.24	2.24	2.24	3.02	3.02
3/8"	17.15	1.65		2.31	2.31	2.31	3.20	3.20
1/2"	21.34	2.11		2.77	2.77	2.77	3.73	3.73	15
3/4"	26.67	2.11		2.87	2.87	2.87	3.91	3.91	20
1"	33.40	2.77		3.38	3.38	3.38	4.55	4.55	25
1 1/4"	42.16	2.77		3.56	3.56	3.56	4.85	4.85	32
1 1/2"	48.26	2.77		3.68	3.68	3.68	5.08	5.08	40
2"	60.32	2.77		3.91	3.91	3.91	5.54	5.54	50
2 1/2"	73.02	3.05		5.16	5.16	5.16	7.01	7.01	65
3"	88.90	3.05		5.49	5.49	5.49	7.62	7.62	80
3 1/2"	101.60	3.05		5.74	5.74	5.74	8.08	8.08	90
4"	114.30	3.05		6.02	6.02	6.02	8.56	8.56	100
5"	141.30	3.40		6.55	6.55	6.55	9.52	9.52	125
6"	168.27	3.40		7.11	7.11	7.11	10.97	10.97	150
8"	219.07	3.76		8.18	8.18	8.18	12.70	12.70	200
10"	273.05	4.19		9.27	9.27	9.27	12.70	15.08	250
12"	323.85	4.57		9.52	9.52	10.31	12.70	17.47	300
14"	355.60	4.77	6.35		9.52	11.12		19.05	350
16"	404.60	4.77	6.35		9.52	12.70		21.44	400
18"	457.20	4.77	6.35		9.52	14.27		23.82	450

Alloy & Temper	Size in mm	Application
7075-T6	14×0.8 / 16×0.7 / 18×0.7	Ski pole / tracking pole
7075-T6	7×0.3 / 9×0.4	Arrow tubes
2014-T6, 7075-T6, 7075-T76	22×2.5 / 30×4.8	Handle bar
AA3003, 6063, 6061	16×1.2 / 12×1.75 / 16×1.75 / 12×2 / 7.94×1 / 9.52×1 / 12.7×1.2 / 16×2	Automobile radiator connector
5046-H111		Condenser & heat exchanger
D97, 1015		Automobile heat sink & radiator tubes
7001-T6	8.5×0.7 / 9.5×0.7 / 11×0.7 / 7×1.2	Tent pole
AA7045, 7050, 6061	60.3×2.29 (7046) / 60.3×2.16 (7050) / 50.8×2.16 (6061)	Bat tubes
AA6061, 7005	26×18×1.6 / 36×18×1.4 / 65×25×2 / 64×42×1.8	Bike tubes (rectangular)
7075-T6, 7050-T7351	30.5×24.8 / 31.7×22.2	Bike shock absorbers
3003-H16	40×0.8 / 40×0.9 / 25×0.9 / 30×0.9 / 120×0.9 / 164×10 / 140×160	Copy drum
7075-T6		Aircraft & rail seat components

Aluminium Pipes & Tubes – Manufacturing Process & Supply Condition

Manufacturing Types	Extruded (Seamless), Drawn (High precision), Welded/ERW (where applicable), Cold-drawn & Stress-relieved options (as per size & alloy).
Supply Form	Pipes, Tubes (Round / Square / Rectangular), Custom profiles (on request), Cut-to-length, Random lengths, Coil/straight (depending on alloy & size).
Supply Condition	As-Extruded, Cold Drawn, Solution Treated, Aged/Heat Treated, Annealed (as per alloy & temper requirement).
Typical Use Guidance	Seamless/Drawn for pressure & precision; Extruded for structural & general engineering; Welded for cost-effective non-critical applications.

Temper Designation Guide (O, H & T Tempers)

Temper	What It Means	Key Benefit	Typical Applications
O (Annealed)	Softened for maximum ductility	Best formability & bending	Deep forming, bending, general fabrication
H12 / H14 / H16 / H18	Strain-hardened (increasing strength levels)	Higher strength than O	Panels, cladding, light structural, forming
T4	Solution heat-treated & naturally aged	Good ductility + moderate strength	Forming + moderate load parts
T5	Cooled from shaping process & artificially aged	Stable properties post-extrusion	Extruded structural sections, frames
T6	Solution heat-treated & artificially aged	High strength	Engineering, automotive, aerospace components
T651 / T7351	Stress-relieved variants of T6 / over-aged variants	Improved stability, reduced distortion	Machined parts, precision components

Pressure & Service Guidance (Selection Support)

Application Type	Recommended Product	Preferred Alloys	Notes
Low Pressure / General Flow	Extruded / Welded Tubes	3003, 6063	Cost-effective; choose higher wall thickness for safety margin.
Medium Pressure / Mechanical Lines	Seamless / Drawn Tubes	6061, 6082	Better dimensional control; suitable for tighter tolerances.
Heat Exchanger / Radiator	Precision Tubes	3003, 6061	Thermal performance depends on alloy, temper, and surface condition.
Structural / Frames / Sporting Goods	Extruded Tubes	6061, 7005, 7075	Strength-driven selection; 7xxx alloys may reduce weldability.

Surface Finish, Coatings & Appearance Options

Finish / Coating	Description	Why It Matters	Common Uses
Mill Finish	As-produced surface	Economical; standard supply	General engineering, structural
Anodized (Clear / Colored)	Electrochemical oxide layer	Improves corrosion resistance & aesthetics	Architectural, consumer goods
Hard Anodized	Thicker, harder anodic coating	Wear resistance	Industrial parts, sliding components
Powder Coated / Painted	Protective & decorative coating	Surface protection + color	Outdoor structures, panels
Polished / Brushed	Decorative finish	Visual appeal	Interiors, displays, architectural trims

Dimensional Tolerances & Geometry Controls (Typical)

Parameter	What It Covers	Why It Matters	Available On Request
OD / ID Tolerance	Outside & inside diameter variation	Fit-up, pressure sealing, assembly	Precision drawn / tighter tolerances
Wall Thickness Tolerance	Minimum/maximum wall	Strength, pressure, weight control	Special inspection + reports
Ovality	Out-of-roundness control	Critical for fittings & joining	Tighter ovality for drawn tubes
Straightness	Bend/deflection per length	Machining & installation performance	Straightness certificates for exports
Length Tolerance	Cut-to-length accuracy	Reduces site cutting & scrap	Custom lengths & deburring

Welding, Bending & Machining Guidelines (Practical Fabrication)

Operation	Best Practice	Recommended Alloys	Important Note
TIG / MIG Welding	Use clean joint prep, correct filler, controlled heat input	6061, 6063, 5083 (if applicable)	7xxx alloys (e.g., 7075) are typically NOT preferred for welding-critical joints.
Bending / Forming	Select suitable temper (O/T4 for tighter bends)	3003, 6063, 6061 (depending on temper)	Minimum bend radius depends on temper & thickness; test bends recommended.
Machining	Use sharp tools, proper coolant, stable fixturing	6061, 2014, 7075	Stress-relieved tempers reduce distortion after machining.
Joining / Fittings	Use correct ferrules, sleeves, and compatible metals	6061/6063 commonly used	Avoid galvanic couples with carbon steel; use isolation when needed.

Corrosion Resistance & Galvanic Compatibility (Selection Notes)

Alloy Group	Corrosion Resistance	Best Environments	Key Warning
3xxx (e.g., 3003)	Excellent	Heat transfer, atmospheric, mild industrial	Good general resistance; confirm for chemical exposure.
6xxx (e.g., 6061/6063)	Very Good	General engineering, structural, transport	Use coating/anodizing for aggressive outdoor/coastal conditions.
7xxx (e.g., 7075)	Moderate	High strength parts (controlled environments)	Prefer protective finishes for humid/coastal environments.
Galvanic Note	When aluminium contacts dissimilar metals (especially carbon steel, copper alloys) in moist environments, galvanic corrosion can occur. Use insulation, coatings, and proper joint design.

Thermal & Physical Performance (Typical Aluminium Characteristics)

Property	Typical Value (General Aluminium)	Why It Matters	Note
Density	~ 2.70 g/cm³	Low weight vs steel/copper	Actual density varies slightly by alloy.
Thermal Conductivity	High (alloy dependent)	Heat transfer efficiency	3003 is commonly preferred for heat transfer applications.
Coefficient of Thermal Expansion	Relatively high vs steel	Movement in temperature cycling	Consider expansion joints/allowances in long runs.
Operating Temperature (General)	Application dependent	Strength changes with temperature	Confirm alloy/temper suitability for high-heat zones.

Testing, Inspection & Certification (Quality Assurance)

Test / Document	What You Get	Applicable For	Remarks
Chemical Analysis	Alloy chemistry verification	All supply lots	Supports compliance to grade.
Mechanical Testing	Tensile / yield / elongation (as applicable)	Structural, engineering, export	Depends on standard & temper.
Dimensional Inspection	OD/ID, wall, length, straightness checks	Precision orders	Reports available on request.
NDT (Optional)	Eddy current / UT / visual checks	Critical applications	Based on project requirement.
MTC / Test Certificate	EN 10204 3.1 / 3.2 (where required)	Exports, OEM approvals	Certificate type depends on contract.

Packing, Marking & Logistics (Export Ready)

End Protection	Plastic caps / end covers (recommended for precision tubes).
Bundling	Bundled with strapping; wrapped for surface protection as per finish.
Export Packing	Seaworthy packing, wooden crates/pallets, moisture protection (on request).
Marking	Alloy, temper, size, heat/lot traceability (as per order).
Cut-to-Length	Cut-to-size with deburring/chamfering options; custom lengths available.

Industries & Typical Uses – Aluminium Pipes & Tubes

Industry	Common Uses	Typical Alloys	Notes
Automotive	Radiator connectors, heat exchanger tubes, structural components	3003, 6061, 6063	Balance strength + corrosion + thermal needs.
Aerospace / Defence	Precision components, high strength assemblies	7075, 7050, 2014	Project-specific certification often required.
Marine / Coastal	Structural, frames, general hardware	6xxx series (common), others on request	Coatings/anodizing recommended for long-life.
HVAC / Thermal	Condensers, heat exchangers, fins & tubes	3003	Thermal performance and forming are key.
Sports / Outdoor	Ski poles, tent poles, bike tubes, bat tubes	6061, 7005, 7075	Strength-to-weight ratio drives alloy selection.

Compliance & Documentation Support

Compliance Support	RoHS / REACH documentation support available on request (subject to mill documentation availability).
Traceability	Heat/lot traceability and marking available as per customer requirement.
Standards Support	Supply as per ASTM / EN / ISO / customer specs (based on product type and availability).

FAQs – Aluminium Pipes & Tubes

Pipe vs Tube	Pipes are typically specified by nominal bore/schedule; tubes are specified by exact OD & wall thickness for precision applications.
Seamless vs Welded	Seamless/drawn tubes are preferred for pressure/precision; welded tubes are typically used for non-critical and cost-sensitive applications.
Best Alloy for Heat Transfer	3003 is commonly used for heat exchangers and radiators due to good formability and thermal performance.
Best Alloy for Strength	6061 offers a strong balance of strength and weldability; 7075/7050 are very high strength but are generally less preferred for welding-critical joints.
Do You Offer Cut-to-Size?	Yes, cut-to-length, deburring/chamfering, and export packing can be provided as per order requirements.

Aluminium Pipes & Tubes
