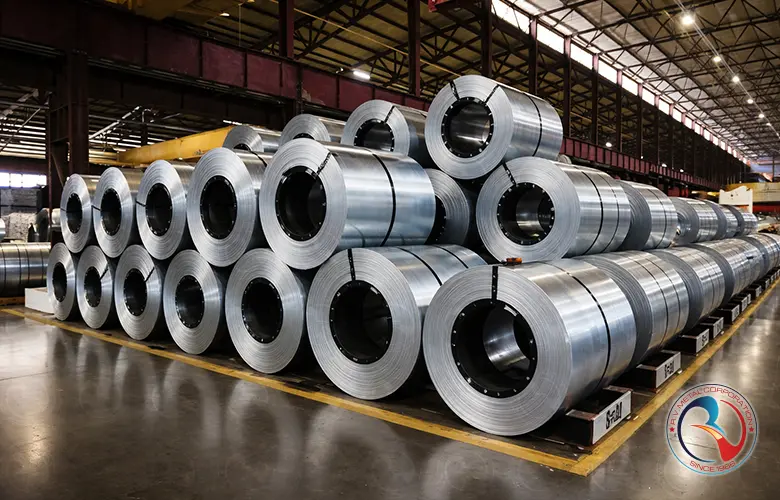

Aluminium Cold Rolled Coils

Product Overview

Aluminium Cold Rolled Coils are precision-processed aluminium products manufactured by cold reducing hot rolled coils to achieve tighter thickness tolerances, superior surface finish, and enhanced mechanical properties. R V Metal Corporation supplies aluminium cold rolled coils in a wide range of alloys, tempers, widths, and thicknesses suitable for demanding industrial and commercial applications. Cold rolling improves flatness, dimensional accuracy, and surface consistency, making these coils ideal for downstream processes such as bending, stamping, forming, cladding, insulation jacketing, and fabrication.

Our aluminium cold rolled coils are available in non-heat-treatable and heat-treatable alloy series, offering an optimal balance of strength, formability, corrosion resistance, and lightweight performance. Depending on alloy and temper, these coils provide excellent workability, controlled hardness, and reliable performance in automotive panels, HVAC systems, electrical enclosures, roofing, packaging, appliance manufacturing, and general engineering applications. Coils can be supplied in mill finish or with customized surface treatments, with full traceability and Mill Test Certificates to ensure compliance with ASTM, EN, IS, and other international standards.

Technical Specifications

Parameter	Specification / Details
Product Form	Aluminium Cold Rolled Coils (CRC)
Manufacturing Process	Cold Rolling of Hot Rolled Aluminium Coils
Alloy Series	1xxx, 3xxx, 5xxx, 6xxx Series
Common Grades	1050, 1060, 1100, 3003, 3004, 5052, 5754, 6061 (as applicable)
Temper Conditions	O, H12, H14, H16, H18, H22, H24, H26, T4, T6
Thickness Range	0.20 mm to 6.00 mm
Width Range	600 mm to 2000 mm (slit widths available)
Coil Inner Diameter (ID)	405 mm / 508 mm (or as specified)
Coil Outer Diameter (OD)	Up to 2000 mm (depending on thickness and weight)
Standard Coil Weight	1 MT to 8 MT (custom coil weights available)
Surface Finish	Mill Finish, Bright Finish (other finishes on request)
Edge Condition	Mill Edge / Slit Edge
Flatness	Controlled flatness suitable for bending, forming & stamping
Thickness Tolerance	As per ASTM / EN / IS standards or customer specification
Density	Approx. 2.70 g/cm³
Standards	ASTM B209, EN 485, IS 737, JIS H4000
Testing & Inspection	Chemical Analysis, Mechanical Testing, Dimensional Inspection
Documentation	Mill Test Certificate (EN 10204 3.1)
Packing	Eye-to-wall / Eye-to-sky, HDPE wrap, wooden pallet, export seaworthy packing
Typical Applications	HVAC, insulation cladding, automotive panels, roofing, appliances, fabrication

Chemical Composition

Alloy Grade	Al (%)	Si (%)	Fe (%)	Cu (%)	Mn (%)	Mg (%)	Cr (%)	Zn (%)	Ti (%)	Others (Each / Total %)
AA 1050	≥ 99.50	≤ 0.25	≤ 0.40	≤ 0.05	≤ 0.05	≤ 0.05	–	≤ 0.05	≤ 0.03	0.03 / 0.10
AA 1060	≥ 99.60	≤ 0.25	≤ 0.35	≤ 0.05	≤ 0.03	≤ 0.03	–	≤ 0.05	≤ 0.03	0.03 / 0.10
AA 1100	≥ 99.00	≤ 0.95	≤ 0.95	0.05 – 0.20	≤ 0.05	–	–	≤ 0.10	–	0.05 / 0.15
AA 3003	Balance	≤ 0.60	≤ 0.70	≤ 0.20	1.00 – 1.50	≤ 0.05	–	≤ 0.10	–	0.05 / 0.15
AA 3004	Balance	≤ 0.30	≤ 0.70	≤ 0.25	1.00 – 1.50	0.80 – 1.30	–	≤ 0.25	–	0.05 / 0.15
AA 5052	Balance	≤ 0.25	≤ 0.40	≤ 0.10	≤ 0.10	2.20 – 2.80	0.15 – 0.35	≤ 0.10	–	0.05 / 0.15
AA 5754	Balance	≤ 0.40	≤ 0.40	≤ 0.10	≤ 0.50	2.60 – 3.60	≤ 0.30	≤ 0.20	≤ 0.15	0.05 / 0.15
AA 6061	Balance	0.40 – 0.80	≤ 0.70	0.15 – 0.40	≤ 0.15	0.80 – 1.20	0.04 – 0.35	≤ 0.25	≤ 0.15	0.05 / 0.15

UNS Codes & Grades

Aluminium Alloy Series	Common Grade (AA)	UNS Designation	EN / European Equivalent	ISO Designation	Key Characteristics	Typical CRC Applications
1xxx Series	AA 1050	A91050	EN AW-1050A	ISO Al99.5	High purity, excellent conductivity, soft	Electrical sheets, reflectors, insulation foils
1xxx Series	AA 1060	A91060	EN AW-1060	ISO Al99.6	Better conductivity than 1050	Transformer sheets, heat exchangers
1xxx Series	AA 1100	A91100	EN AW-1100	ISO Al99.0Cu	Excellent formability & corrosion resistance	Deep drawing, chemical equipment
3xxx Series	AA 3003	A93003	EN AW-3003	ISO AlMn1	Good strength, excellent corrosion resistance	Roofing sheets, cookware, radiators
3xxx Series	AA 3004	A93004	EN AW-3004	ISO AlMn1Mg1	Higher strength than 3003	Beverage cans, body panels
5xxx Series	AA 5052	A95052	EN AW-5052	ISO AlMg2.5	Excellent corrosion resistance, weldable	Marine sheets, pressure vessels
5xxx Series	AA 5754	A95754	EN AW-5754	ISO AlMg3	High strength, good formability	Automotive panels, structural sheets
6xxx Series	AA 6061	A96061	EN AW-6061	ISO AlMg1SiCu	Heat-treatable, balanced strength	Engineering panels, machined parts
6xxx Series	AA 6063	A96063	EN AW-6063	ISO AlMg0.7Si	Excellent surface finish	Decorative panels, architectural sheets

Mechanical, Physical & Fabrication Properties

Property Category	Parameter	Typical Value / Range	Applicable Alloy Series	Remarks
Mechanical Properties	Tensile Strength	70 – 330 MPa	1xxx – 6xxx Series	Depends on alloy, temper (O, H12, H14, H18)
	Yield Strength	30 – 290 MPa	3xxx, 5xxx, 6xxx Series	Higher in strain-hardened (H-temper) coils
	Elongation	4% – 35%	All CRC Grades	Excellent formability in O & H12 tempers
	Hardness (Brinell)	20 – 95 HB	All Series	Increases with cold work (H14 / H18)
	Fatigue Resistance	Moderate to Good	5xxx, 6xxx Series	Suitable for automotive & structural sheets
	Forming Limit	High (Alloy dependent)	1xxx, 3xxx Series	Ideal for deep drawing applications
Physical Properties	Density	2.70 g/cm³	All Aluminium CRC	Approximately one-third the weight of steel
	Melting Range	580°C – 660°C	All Series	Varies with alloying elements
	Thermal Conductivity	120 – 235 W/m·K	1xxx, 3xxx, 5xxx	Excellent heat dissipation
	Electrical Conductivity	30 – 65 % IACS	1xxx, 3xxx Series	High in near-pure aluminium grades
	Coefficient of Thermal Expansion	22 – 24 µm/m·K	All Series	Important for precision panels & assemblies
	Corrosion Resistance	Excellent	1xxx, 3xxx, 5xxx Series	Natural oxide layer provides protection
Fabrication Properties	Cold Formability	Excellent	1xxx, 3xxx Series	Suitable for bending, rolling & stamping
	Deep Drawability	Very Good	1100, 3003	Preferred for cookware & enclosures
	Machinability	Fair to Good	5xxx, 6xxx	Improves with higher alloy strength
	Weldability	Good to Excellent	3xxx, 5xxx, 6xxx	MIG/TIG welding commonly used
	Heat Treatability	Yes / No	6xxx (Yes), Others (No)	Most CRC grades are non-heat-treatable
	Anodizing Suitability	Good to Excellent	1xxx, 6xxx	Best surface finish with 6063
	Surface Finish Quality	High	All CRC Grades	Uniform thickness & smooth surface

Common Names & International Identifiers

Common Name	Alloy Series	AA / ASTM Designation	UNS Designation	EN / European Designation	ISO Identifier	Typical Applications
Commercial Pure Aluminium CRC	1xxx Series	AA 1100 / AA 1050	A91100 / A91050	EN AW-1100 / EN AW-1050	ISO Al99.0 / Al99.5	Electrical panels, reflectors, insulation sheets
Deep Drawing Aluminium Coil	1xxx Series	AA 1200	A91200	EN AW-1200	ISO Al99.0	Cookware, lighting components, packaging
Manganese Aluminium CRC	3xxx Series	AA 3003	A93003	EN AW-3003	ISO AlMn1	Heat exchangers, radiators, roofing sheets
Enhanced Strength Mn Alloy CRC	3xxx Series	AA 3004 / AA 3105	A93004 / A93105	EN AW-3004 / EN AW-3105	ISO AlMn1Mg1	Building panels, beverage cans, cladding
Magnesium Aluminium CRC	5xxx Series	AA 5005	A95005	EN AW-5005	ISO AlMg1	Anodized sheets, decorative panels
Marine Grade Aluminium Coil	5xxx Series	AA 5052	A95052	EN AW-5052	ISO AlMg2.5	Marine panels, fuel tanks, enclosures
Structural Aluminium CRC	5xxx Series	AA 5083	A95083	EN AW-5083	ISO AlMg4.5Mn	Shipbuilding, pressure vessels, transport
Magnesium-Silicon Aluminium CRC	6xxx Series	AA 6061	A96061	EN AW-6061	ISO AlMg1SiCu	Structural panels, machined components
Architectural Aluminium Coil	6xxx Series	AA 6063	A96063	EN AW-6063	ISO AlMg0.7Si	Decorative panels, trim, façade elements
High Strength Aluminium Sheet Coil	7xxx Series	AA 7075	A97075	EN AW-7075	ISO AlZnMgCu1.5	Aerospace panels, high-load components

Standards & International Equivalents

Standard System	Standard / Specification	Scope / Coverage	Applicable Alloy Series	Typical Grades Covered	Remarks / Industry Usage
ASTM / AA (USA)	ASTM B209 / B209M	Aluminium & aluminium-alloy sheet and plate (incl. CRC)	1xxx, 3xxx, 5xxx, 6xxx, 7xxx	1100, 1200, 3003, 3004, 5052, 5083, 6061	Primary global reference for aluminium cold rolled coils
ASTM / AA (USA)	ASTM B210 / B210M	Drawn aluminium tubes & coil stock (limited CRC use)	1xxx, 3xxx	1100, 3003	Used when CRC is further processed into tubing
EN (Europe)	EN 485 (Parts 1–4)	Aluminium & aluminium alloy sheets, strips & coils	All wrought aluminium series	EN AW-1050, 3003, 5005, 5052, 5754	Main European CRC standard (dimensions, tolerances, properties)
EN (Europe)	EN 573 (Parts 1–4)	Chemical composition of wrought aluminium alloys	1xxx–7xxx	EN AW-1100, EN AW-3003, EN AW-5052	Used alongside EN 485 for material identification
ISO (International)	ISO 6361 / ISO 6362	Wrought aluminium sheets, strips and plates	All series	Al99.5, AlMn1, AlMg2.5	International reference standard for CRC trade
IS (India)	IS 737	Wrought aluminium sheets and strips	1xxx, 3xxx, 5xxx	IS:737 Gr O / H2 / H4	Indian domestic & infrastructure projects
IS (India)	IS 733	Aluminium sheets, plates & strips for general engineering	Commercial & alloy grades	IS:19000 / IS:24345 equivalents	Often referenced for CRC in fabrication use
JIS (Japan)	JIS H4000	Aluminium & aluminium alloy sheets and strips	1xxx–6xxx	A1100, A3003, A5052	Used for Japanese OEM & automotive supply
DIN (Germany)	DIN EN 485 / DIN EN 573	European aluminium sheet & coil standards	All wrought alloys	Al99.5, AlMn1, AlMg3	Legacy DIN now harmonized under EN system
GB (China)	GB/T 3880	Aluminium & aluminium alloy plates, sheets & strips	1xxx–5xxx	1060, 3003, 5052	Chinese domestic & export CRC standard
BS (UK)	BS EN 485 / BS EN 573	Aluminium sheets, strips & coils	All wrought alloys	HE9, HE30 (legacy equivalents)	UK adoption of EN aluminium standards

Applications

Industry / Sector	Application Area	Typical Alloy Grades Used	Temper Conditions	Why Aluminium CRC is Preferred
Automotive	Body panels, heat shields, trims, fuel system components	3003, 3004, 5052, 5754	O, H12, H14, H18	Lightweight, corrosion resistance, good formability
HVAC & Refrigeration	Evaporator fins, condenser sheets, insulation cladding	1100, 1200, 3003	O, H14, H16	High thermal conductivity and excellent workability
Electrical & Electronics	Transformer winding strips, electrical enclosures	1050, 1060, 1100	O, H12, H14	Good electrical conductivity and surface finish
Construction & Architecture	Roofing sheets, wall cladding, facades, insulation panels	3003, 5005, 5052	H14, H24, H18	Weather resistance, aesthetic finish, low maintenance
Packaging Industry	Can body stock, closures, caps, containers	3004, 3104	H19, H18	Excellent formability, lightweight, food-safe alloys
Appliances & White Goods	Refrigerator backs, washing machine panels, oven liners	3003, 5052	H14, H24	Durability, corrosion resistance, clean surface finish
Industrial Fabrication	Pressed parts, stamped components, fabricated panels	3003, 5052, 6061	O, H14	Ease of forming, welding compatibility
Marine & Offshore	Deck panels, covers, internal linings	5052, 5754	H32, H34	High resistance to saltwater corrosion
Solar & Renewable Energy	Solar panel backing sheets, mounting components	3003, 5005	H14, H24	Weather durability and structural stability
General Engineering	Laser-cut parts, CNC components, housings	3003, 5052, 6061	O, H14	Dimensional stability and machining suitability

Common Aluminium Cold Rolled Coils – Sizes & Theoretical Weight Chart

Thickness (mm)	Thickness (Gauge)	Standard Width (mm)	Typical Coil Weight (kg)	Theoretical Weight (kg/m²)	Approx. Weight per Meter (kg)	Common Applications
0.30	26G	1000 / 1220 / 1250	2000 – 4000	0.81	0.81 × width (m)	Insulation cladding, HVAC fins
0.40	25G	1000 / 1220 / 1250	2500 – 5000	1.08	1.08 × width (m)	Appliance panels, enclosures
0.50	24G	1000 / 1220 / 1250	3000 – 6000	1.35	1.35 × width (m)	Roofing sheets, fabrication
0.63	22G	1000 / 1220 / 1250	3000 – 6500	1.70	1.70 × width (m)	Automotive panels, ducting
0.80	21G	1000 / 1220 / 1250	3500 – 7000	2.16	2.16 × width (m)	Structural cladding, housings
1.00	20G	1000 / 1220 / 1250	4000 – 8000	2.70	2.70 × width (m)	General engineering, panels
1.20	18G	1000 / 1220 / 1250	4500 – 9000	3.24	3.24 × width (m)	Industrial fabrication
1.60	16G	1000 / 1220 / 1250	5000 – 10000	4.32	4.32 × width (m)	Heavy-duty panels, machinery
2.00	14G	1000 / 1220 / 1250	6000 – 12000	5.40	5.40 × width (m)	Structural & load-bearing parts

Note: Theoretical weights are calculated using an aluminium density of 2.70 g/cm³. Actual coil weight may vary depending on alloy, temper, rolling tolerance, and surface finish.

Formula used:
Weight (kg/m²) = Thickness (mm) × 2.70

CRC vs HR Aluminium – Technical Comparison Table

Parameter	Cold Rolled Aluminium (CRC)	Hot Rolled Aluminium (HR)
Rolling Process	Rolled at room temperature after hot rolling	Rolled at high temperature (above recrystallization)
Surface Finish	Smooth, uniform, clean surface	Rougher surface with oxide scale
Dimensional Accuracy	High accuracy, tight tolerances	Lower accuracy, wider tolerances
Thickness Range	Typically 0.2 mm – 3.0 mm	Typically 2.0 mm – 150+ mm
Mechanical Strength	Higher strength due to work hardening	Lower strength in as-rolled condition
Formability	Moderate (depends on temper)	Excellent for heavy forming
Residual Stresses	Higher (may require stress relief)	Minimal residual stress
Flatness	Excellent flatness	Less flat compared to CRC
Edge Condition	Clean, sharp edges	Rounded or irregular edges
Surface Treatments	Ideal for anodizing, painting, coating	Requires surface preparation before finishing
Typical Tempers	O, H12, H14, H16, H18	O, F (as rolled)
Production Cost	Higher due to additional processing	Lower cost per kg
Appearance-Critical Use	Highly suitable	Not suitable without further processing
Machinability	Good	Very good for heavy machining
Typical Supply Form	Coils, sheets	Plates, slabs
Common Applications	Appliances, HVAC, panels, enclosures	Structural plates, pressure vessels, base plates
